Radiator: Service and Repair

FS





KL

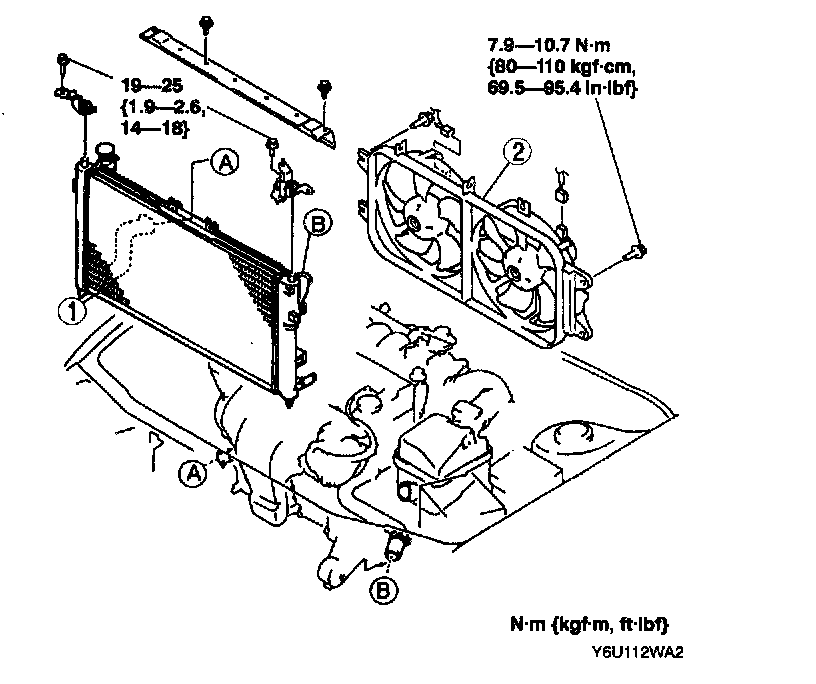

RADIATOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove the fresh air duct.
4. Remove the oil pipe. (FS: ATX)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
