Drive Belt: Adjustments

DRIVE BELT ADJUSTMENT [KL]

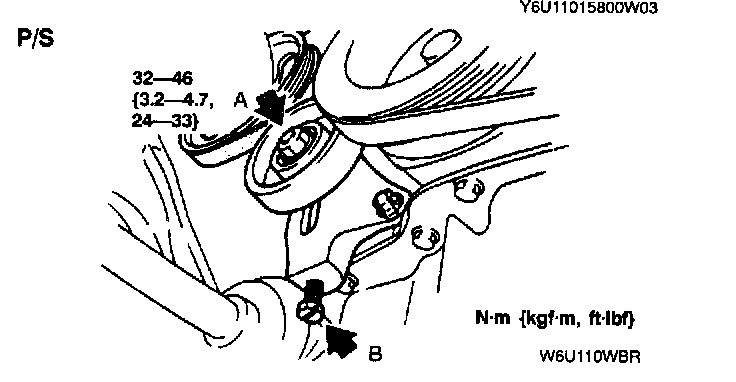

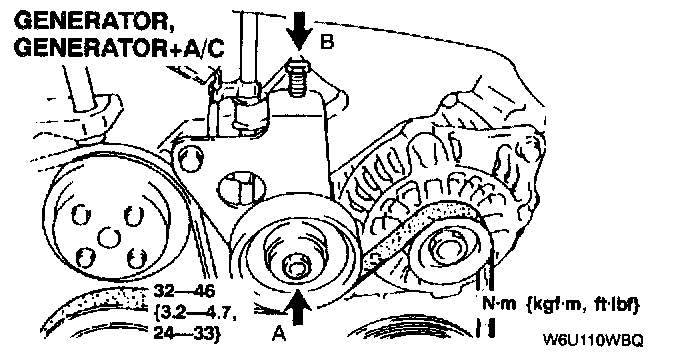

1. Loosen locknut A.
2. Adjust the belt deflection or tension by turning the adjusting bolt B.
3. Tighten locknut A.
4. Verify the belt deflection or tension.
