Windshield Washer Spray Nozzle: Service and Repair

REMOVAL
1. Remove the hood insulator.




2. Disconnect the windshield washer hose from the windshield washer nozzle.

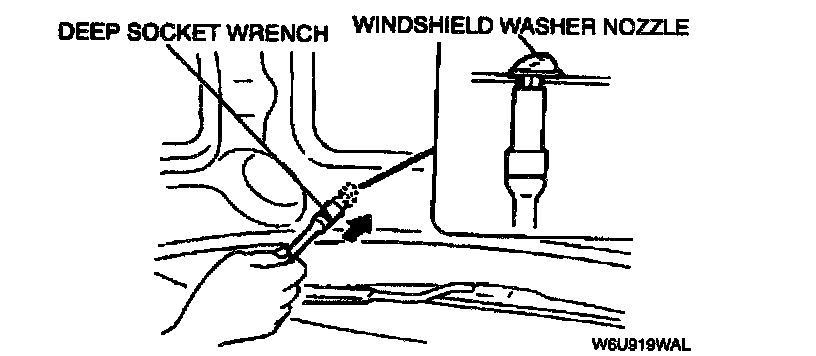

3. Remove the windshield washer nozzle by using a 10 mm {0.4 in} deep socket wrench from underneath the hood.

INSTALLATION
1. Connect the windshield washer hose to windshield washer nozzle.
2. Push the windshield washer nozzle into the installation hole.
3. Adjust the windshield washer nozzle.
4. Install the hood insulator.
