Condenser Fan Motor: Testing and Inspection

CONDENSER FAN INSPECTION
1. Disconnect the condenser fan connector.

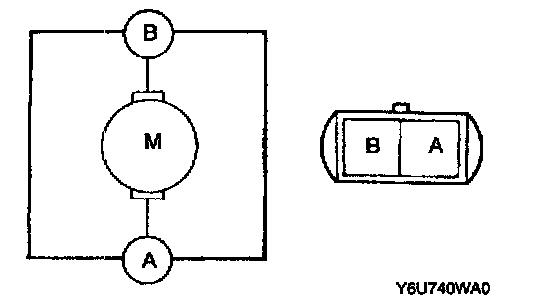

2. Connect battery positive voltage to terminal B and ground to terminal A of the condenser fan and verify its operation.
- If not as specified, replace the condenser fan.
