Shift Cable: Testing and Inspection

INTERLOCK CABLE INSPECTION
1. Remove the interlock cable and lock unit.

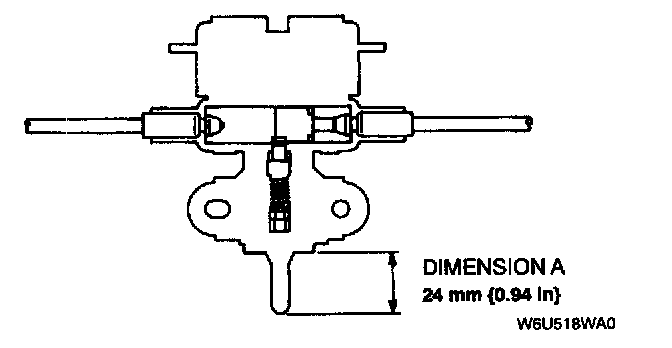

2. With the slider pin protrusion (dimension A) as specified, verify that the interlock cable moves freely in the lock unit.
- If not as specified, replace the interlock cable.
3. Install the interlock cable and lock unit.
