Removal/Installation

1. Disconnect the negative battery cable.

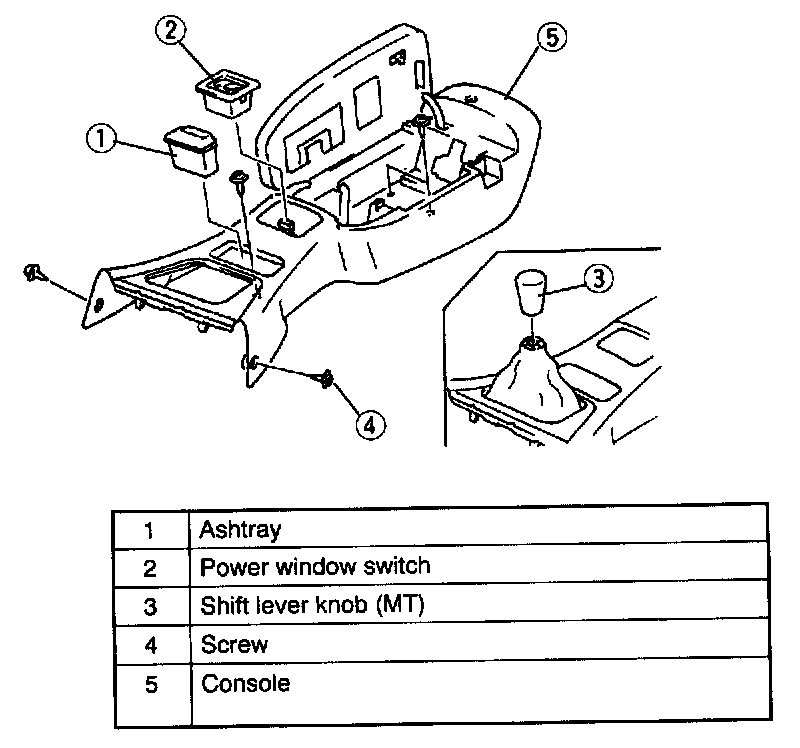

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

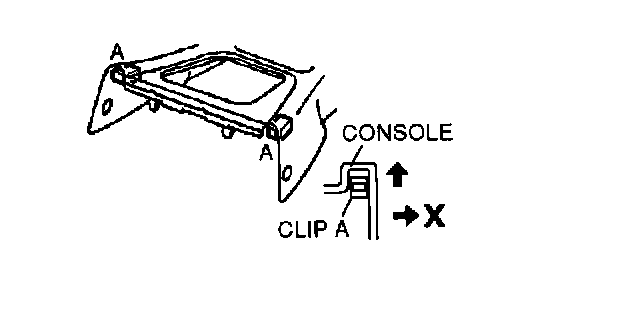

Console Removal Note
Pull the console upward to disengage the clips A from the body.
