Extension Housing: Service and Repair
EXTENSION HOUSING REMOVAL/INSTALLATION1. Clean the transmission exterior thoroughly using a steam cleaner or cleaning solvent.
2. Disconnect the negative battery cable.
3. Drain the ATF.
4. Disconnect the speed sensor connector.
5. Remove the exhaust system.
6. Remove the propeller shaft.
7. Support the transmission on a jack.
8. Remove the power plant frame.

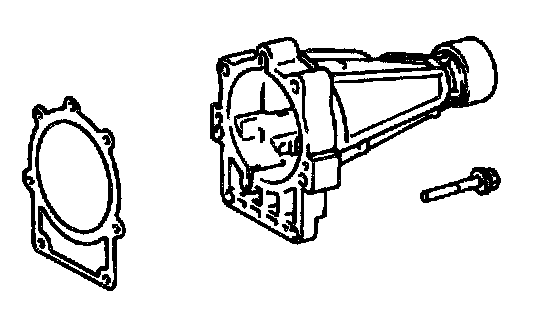

9. Remove the extension housing and gasket.
10. Install a new gasket and extension housing on the transmission case.
Tightening torque
24 - 41 Nm (2.4 - 4.2 kgf.m, 18 - 30 ft. lbs.)
11. Install the power plant frame.
12. Install the propeller shaft.
13. Install the exhaust system.
14. Connect the speed sensor connector.
15. Add ATF to the specified level.
16. Carry out the line pressure test.
17. Carry out the road test.
