Center Mounted Brake Lamp: Service and Repair

1. Disconnect the negative battery cable.




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

High-mount Brake Light Removal Note

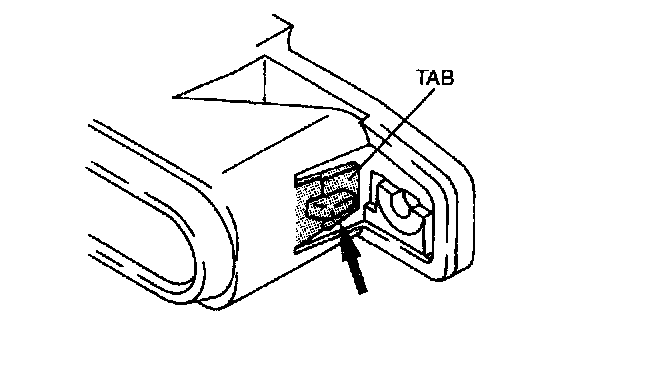

1. Insert a tape-wrapped flathead screwdriver into the left side opening.

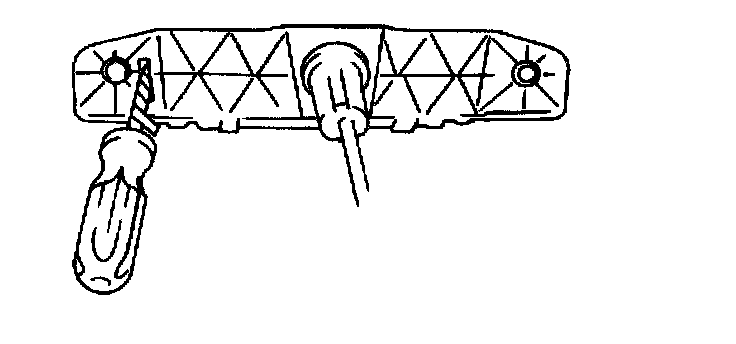

2. Press the tab of the high-mount brake light with a tape-wrapped flathead screwdriver.




3. Pull the high-mount brake light out from the body.
