Rear

REAR BRAKE DISC REMOVAL/INSTALLATION





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the pedal a few times. Then rotate the wheel by hand and verify that the brakes do not drag.
4. If any disc plate has been replaced, settle the parking brake shoes.

CALIPER INSTALLATION NOTE

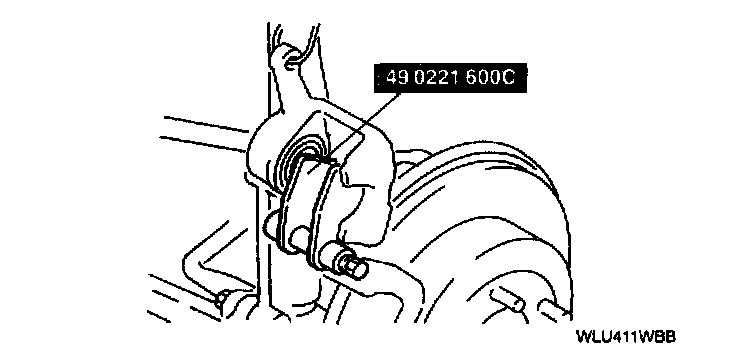

1. Push the piston fully inward using the Special Service Tool (SST).
2. Install the caliper.
