Condenser Fan Motor: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the inter cooler [KJ].

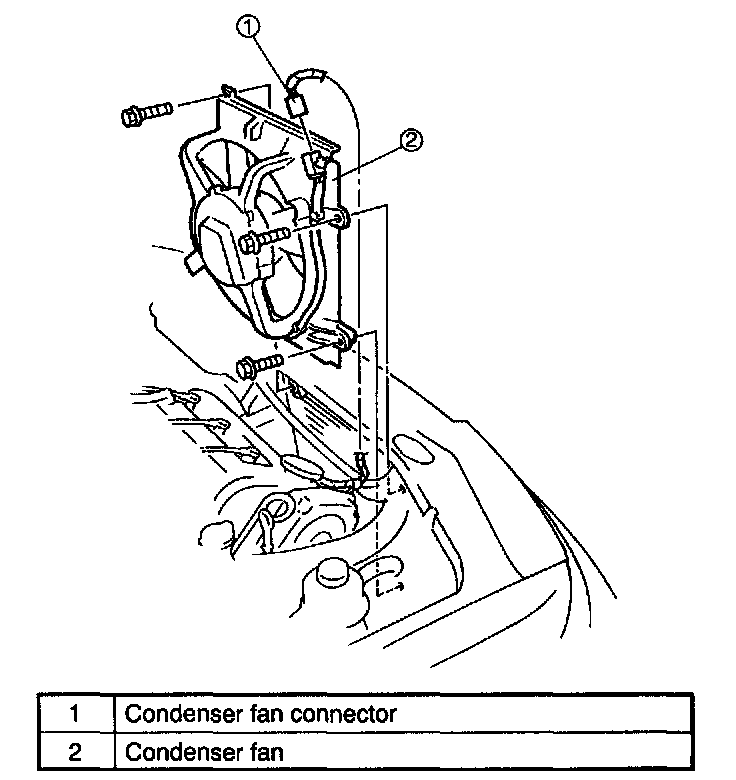

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
