Grille: Service and Repair

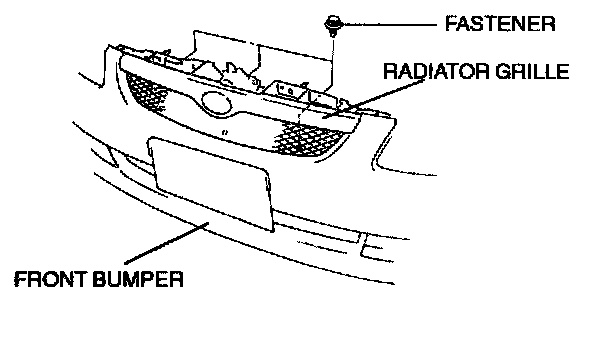

1. Remove the front bumper.
2. Remove the fasteners, then remove the radiator grille.
3. Install in the reverse order of removal.
