A-Pillar Trim

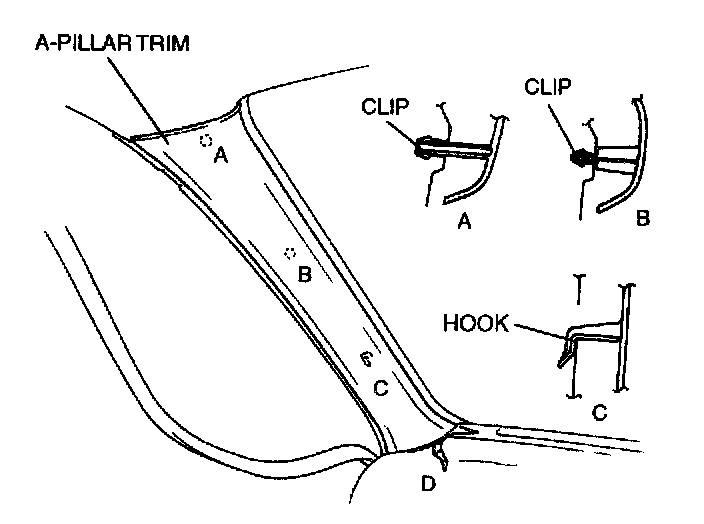

A-Pillar Trim
1.
Turn the seaming welt over.
2.
Disengage clip A and B using a fastener remover.
3.
Pull the A-pillar trim upward, then disengage hook C and D.
4.
Install in the reverse order of removal.
