Home >> Mazda >> 2000 >> Protege DX L4-1.6L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Schematic

System Schematic

SYSTEM WIRING DIAGRAM
ZM Engine

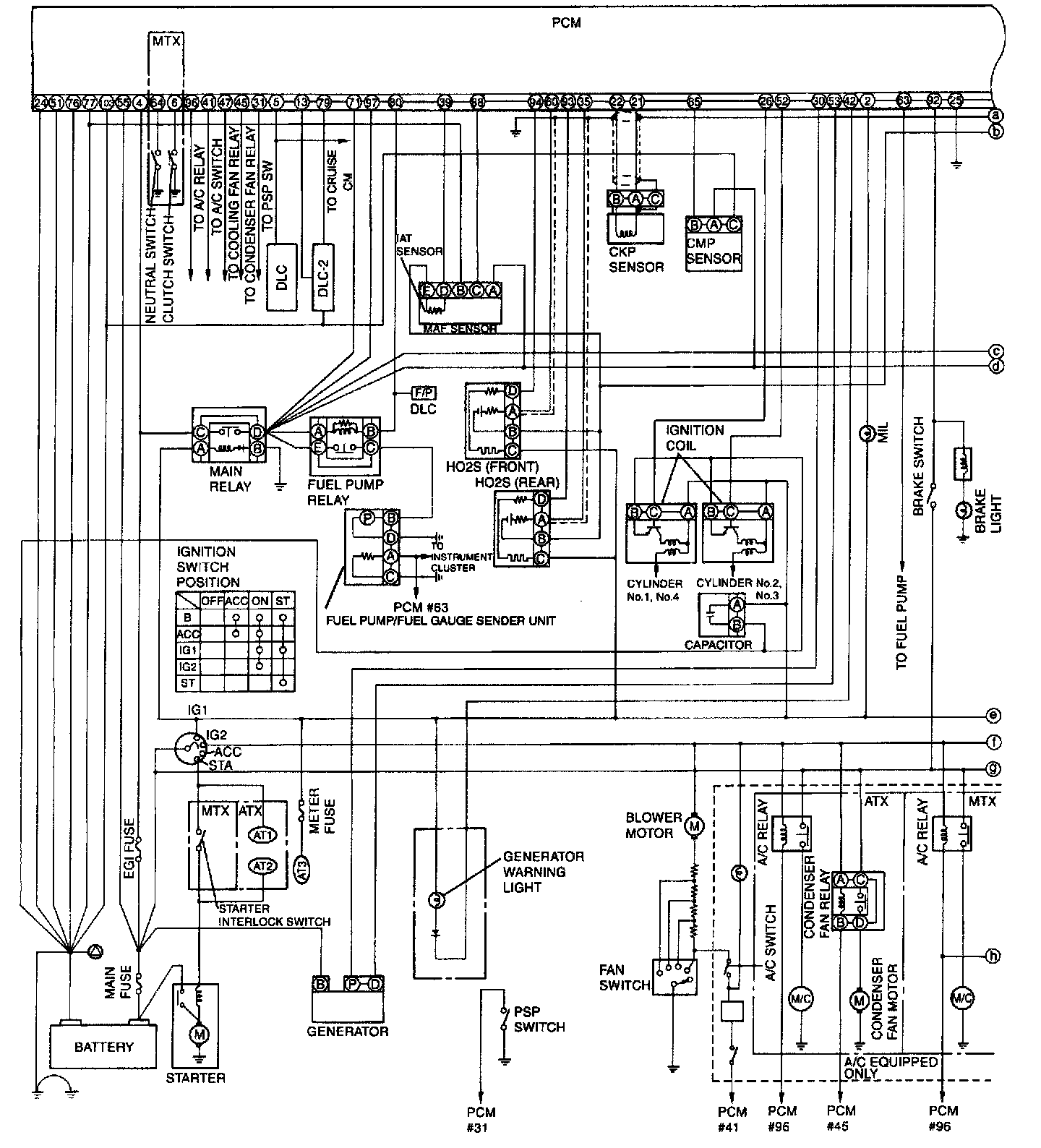

Part 1 of 2

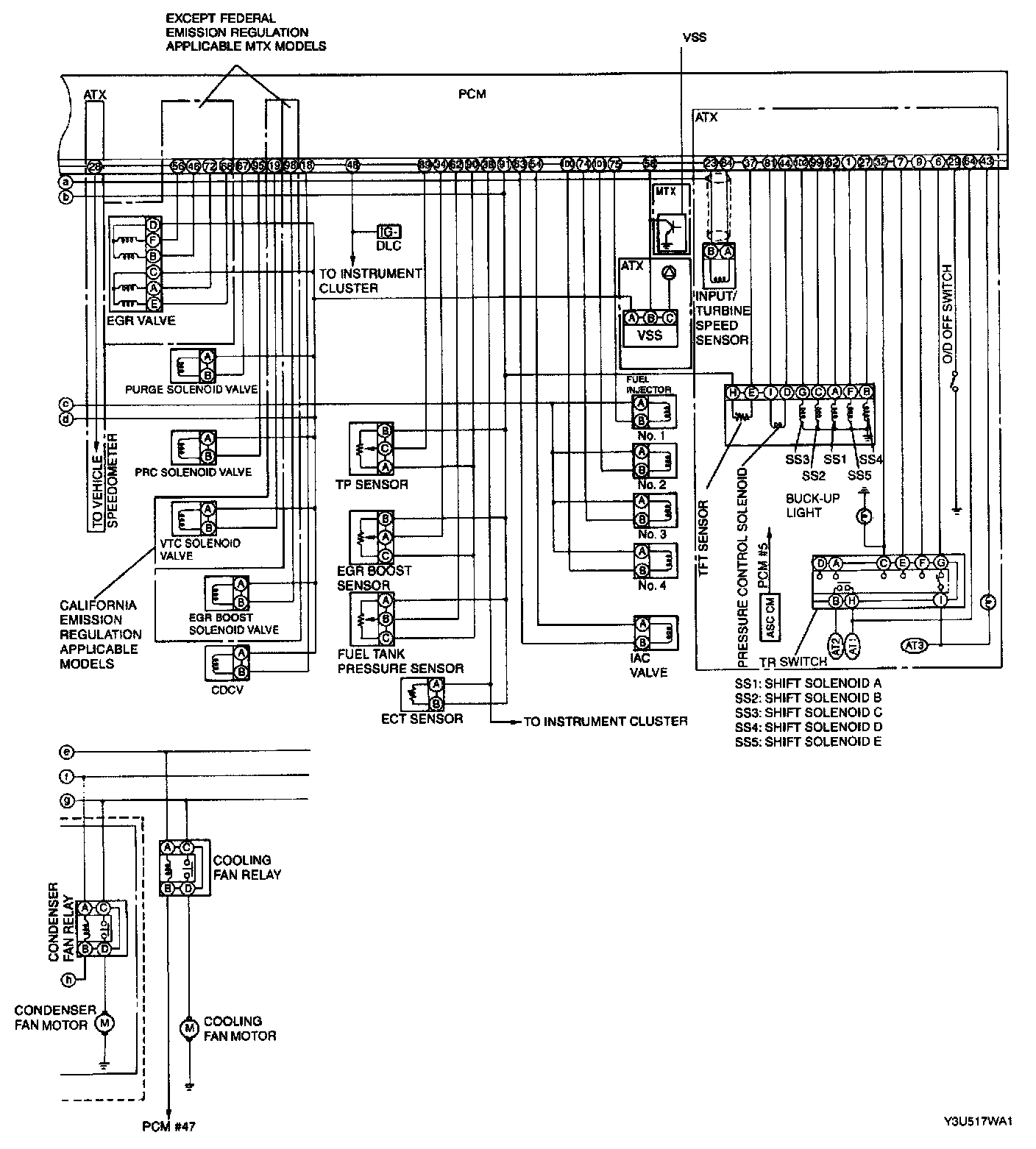

Part 2 of 2
