Compressor Clutch: Service and Repair

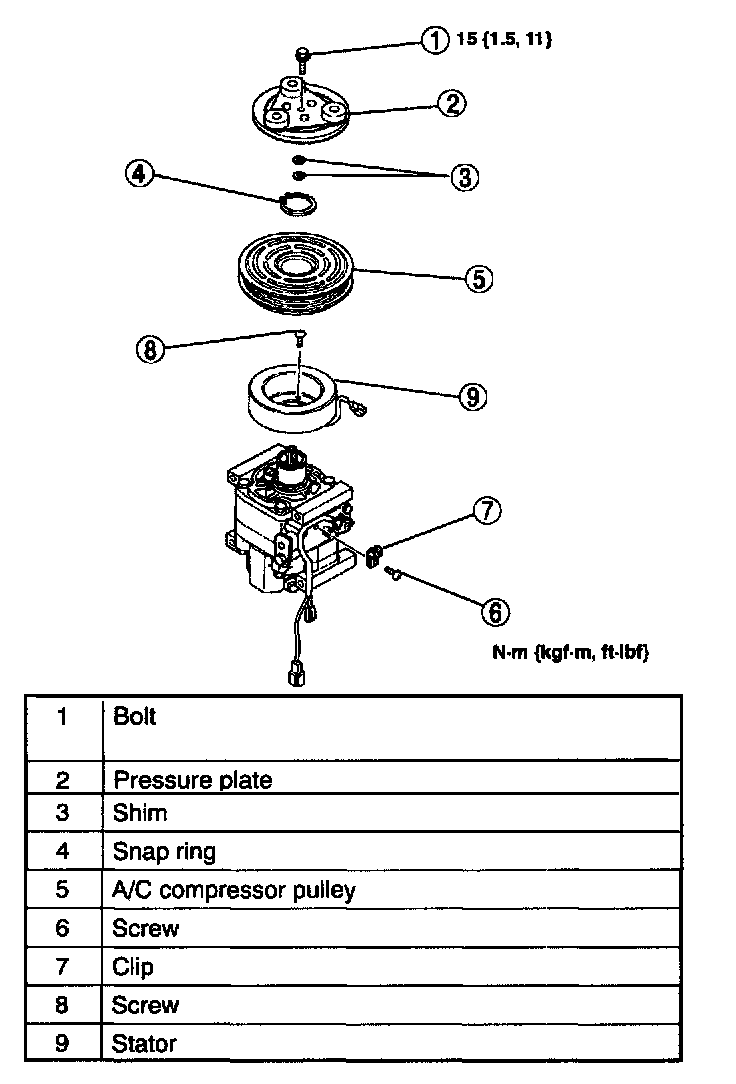

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance.




Bolt Removal/Installation Note

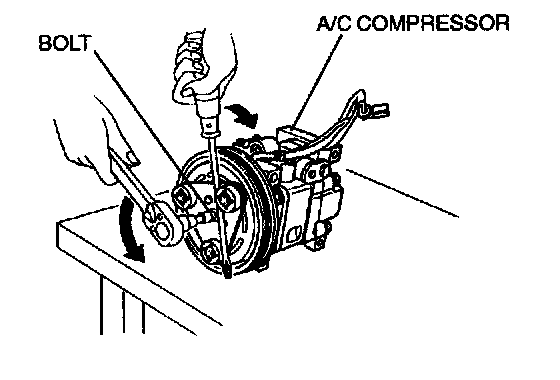

When removing or installing the bolt, hold the pressure plate in place as shown in the figure.
