Locations
>>
Component Locations
Component Locations

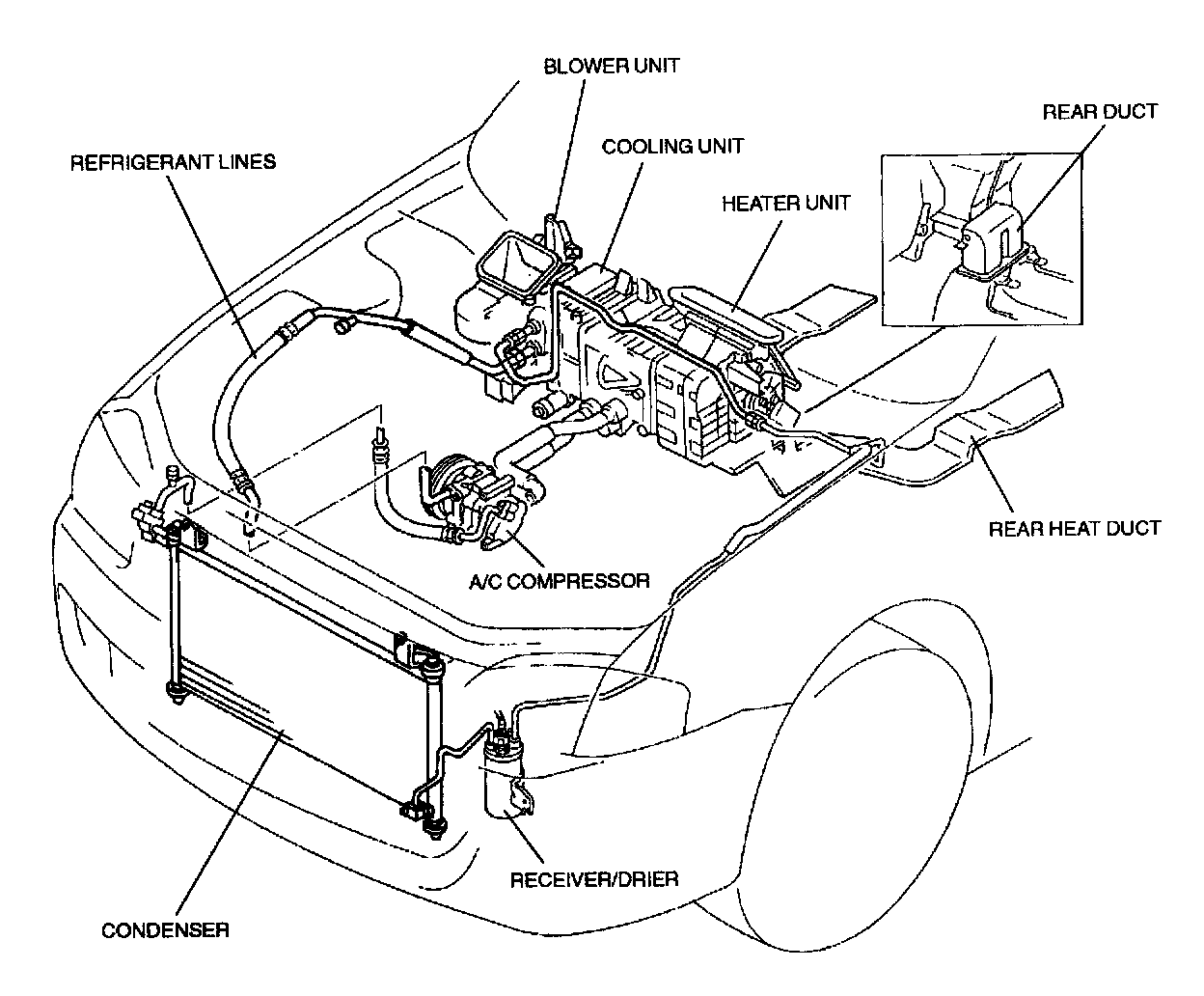

Basic System Structural View:

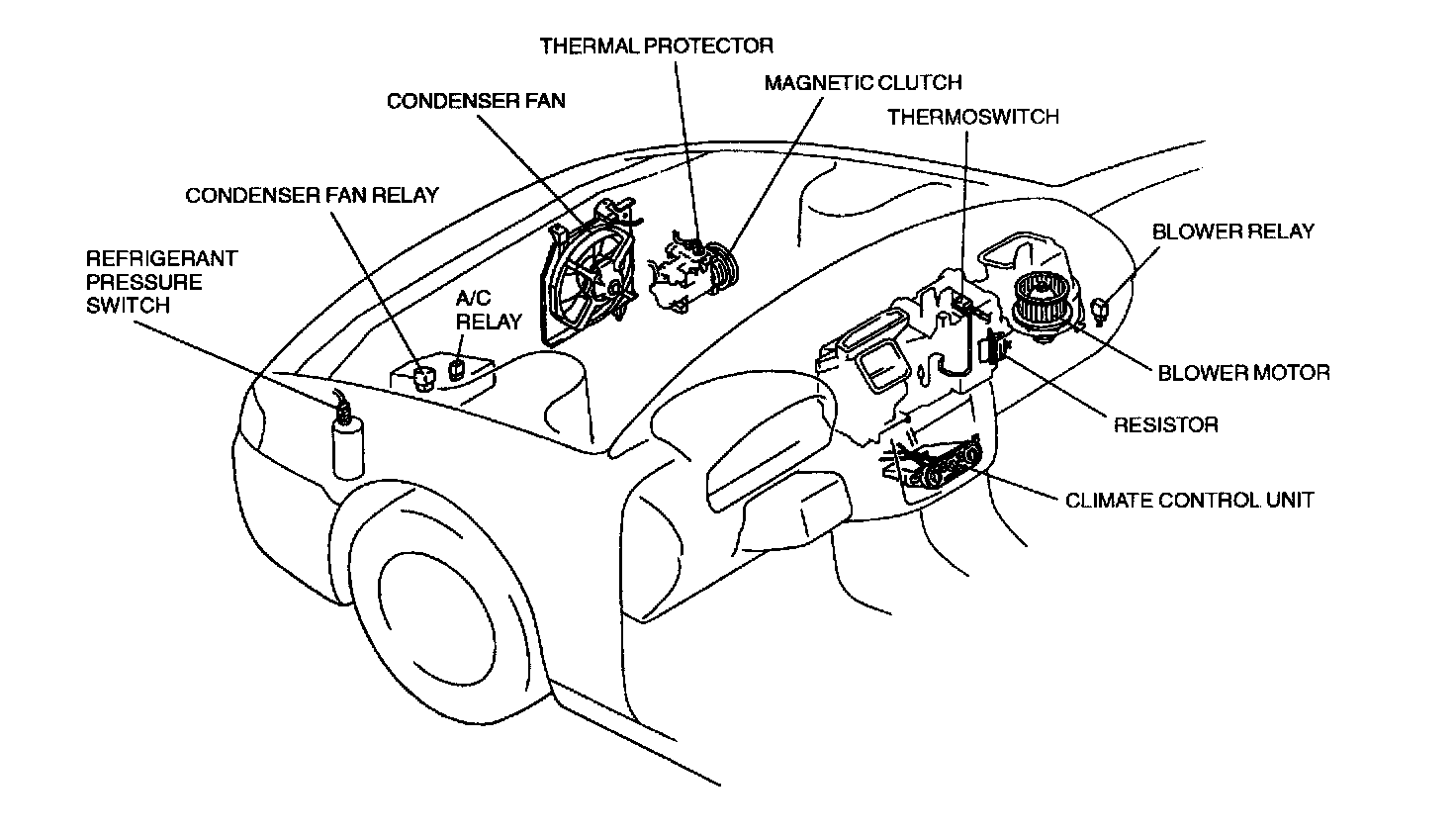

Control Sytem Structural View:
