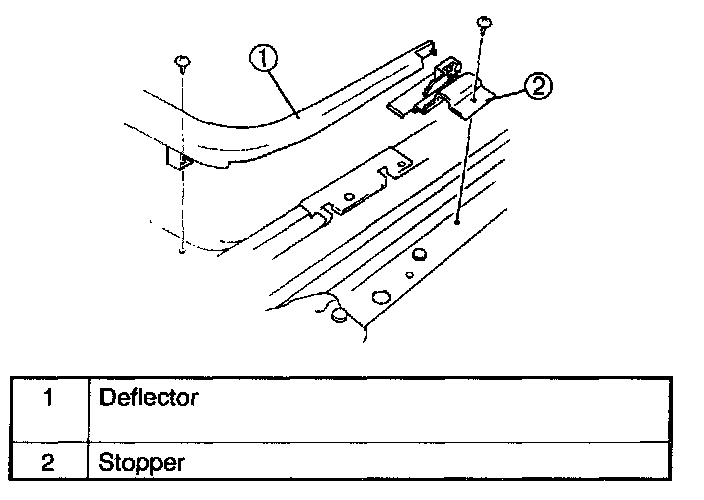

Deflector

1. Fully open the glass panel.
2. To remove the stopper, remove the sunroof unit.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

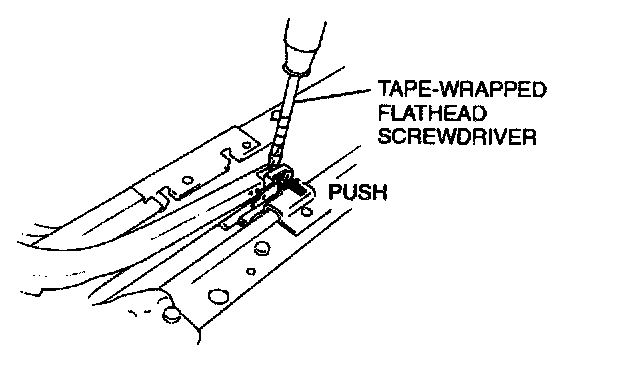

Deflector Removal Note
Remove the deflector using a tape-wrapped flathead screwdriver.
