Front Door Weatherstrip: Service and Repair
1.
Open the front door glass fully.
2.
Remove the screw.
3.

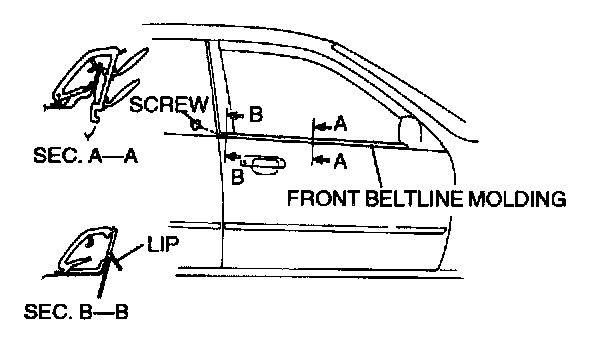

Pull front beltline molding up, then remove it.
4.
Install in the reverse order of removal.
