Exhaust System: Service and Repair

EXHAUST SYSTEM REMOVAL/INSTALLATION [FP]

Warning: When the engine and exhaust system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the exhaust system.

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Exhaust Manifold Removal Note
1. Remove the air cleaner and air hose.

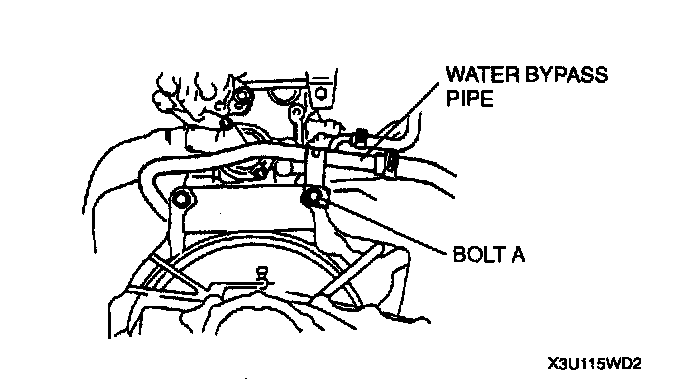

2. Remove bolt A on the water bypass pipe before removing the exhaust manifold.
Tightening torque: 64 - 89 Nm (6.5 - 9.1 kgf-m, 48 - 65 ft. lbs.)

Exhaust Manifold Gasket Installation Note

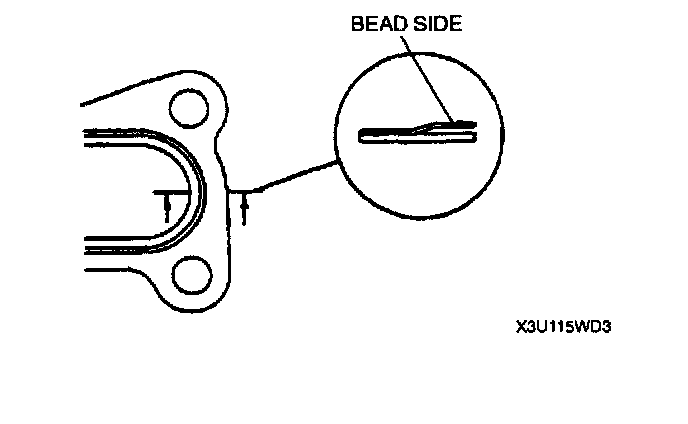

1. To install the exhaust manifold gasket, make sure that the bead side of the gasket is facing the exhaust manifold side.
