Front

WHEEL BEARING PLAY INSPECTION

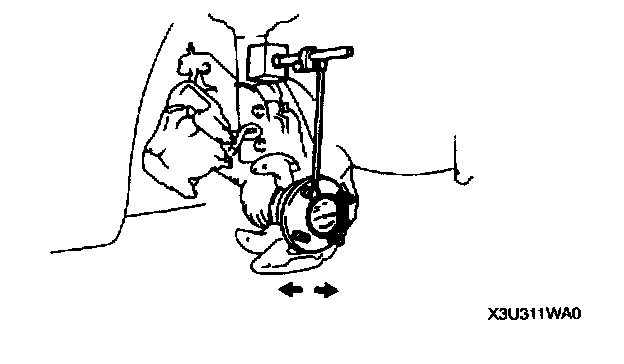

1. Position a dial indicator against the wheel hub.





2. Push and pull the wheel hub by hand in the axial direction and measure the wheel bearing play.
- If the bearing play exceeds the specification, replace the wheel bearing as necessary and tighten the locknut to the specified torque and retest.
Maximum wheel bearing play
0.05 mm (0.002 inch)
