Rear Door Weatherstrip: Service and Repair

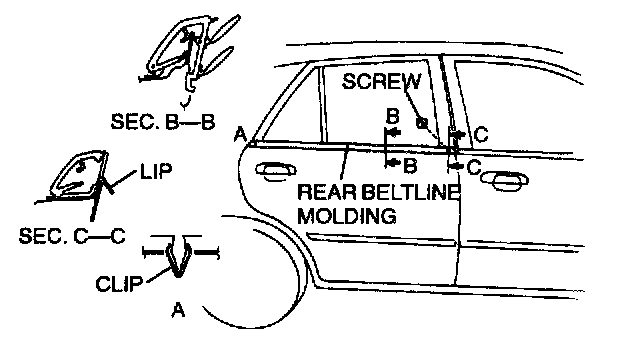

1.
Remove the rear door glass.
2.
Remove the screw.
3.
Pull the rear beltline molding up, then disengage clip A.
4.
Install in the reverse order of removal.
