Home >> Mazda >> 2000 >> Protege LX L4-1.6L DOHC >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Diagrams >> Electrical Diagrams

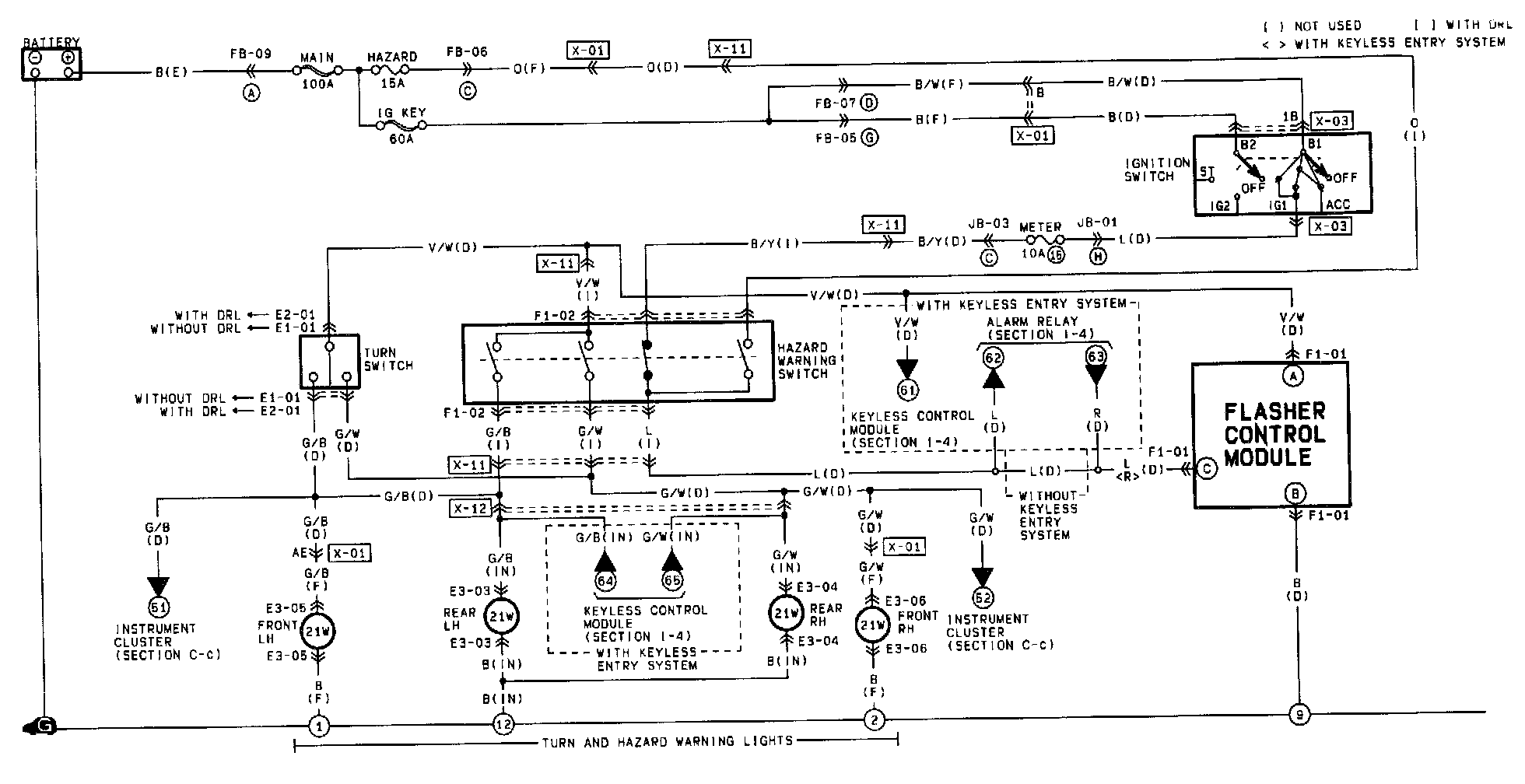

Electrical Diagrams
