Front Fender: Service and Repair

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the mud guard.
3. Remove the front bumper.
4. Remove the front fender seal plate.

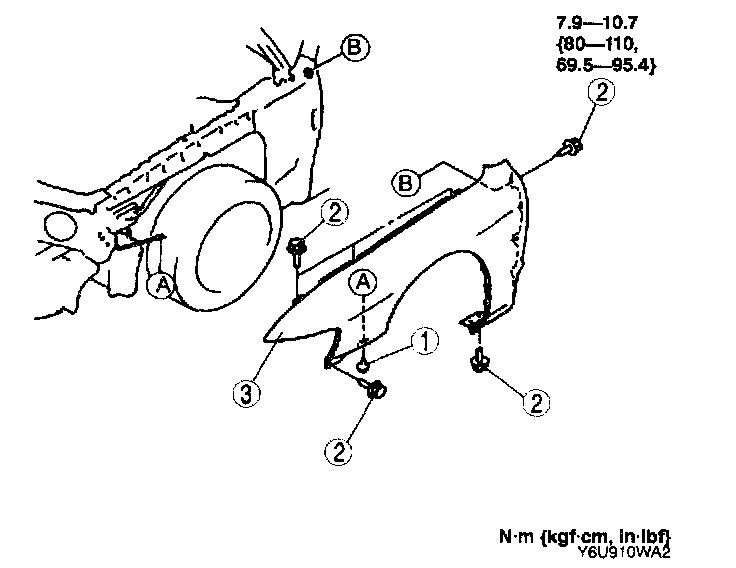

5. Remove in the order as indicated below.
1. Screw
2. Bolt
3. Front fender panel

6. Install in the reverse order of removal.
7. Adjust the headlight aiming.
