Traction Control Switch: Testing and Inspection

TCS OFF SWITCH INSPECTION





1. Remove the TCS OFF switch.

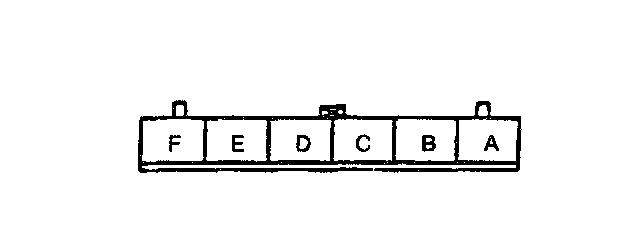

2. Measure the resistance between B and C of the connector.
- If not within the specification, replace the TCS OFF switch.

Resistance
When switch is pressed: 100 ohms or less
When switch is released: Infiniti
