Cruise Control Servo Cable: Adjustments

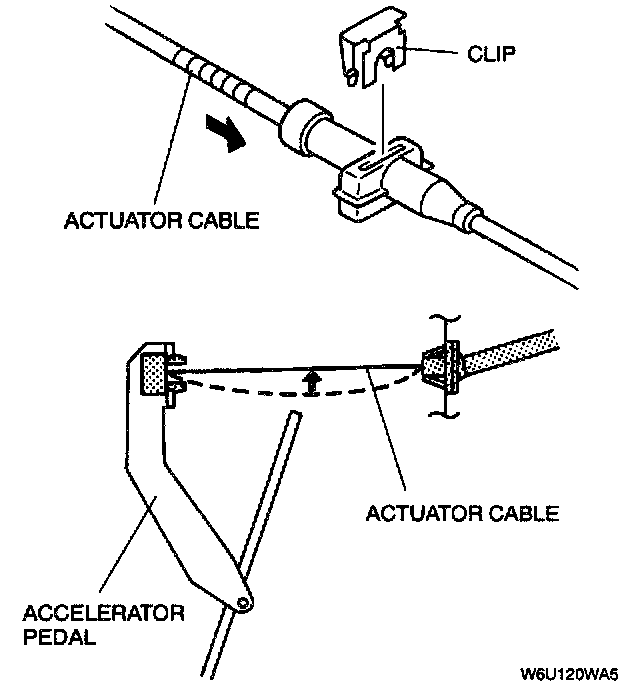

ACTUATOR CABLE ADJUSTMENT1. Remove the clip.
2. Pull the actuator cable until the throttle lever starts moving to eliminate the actuator cable play.

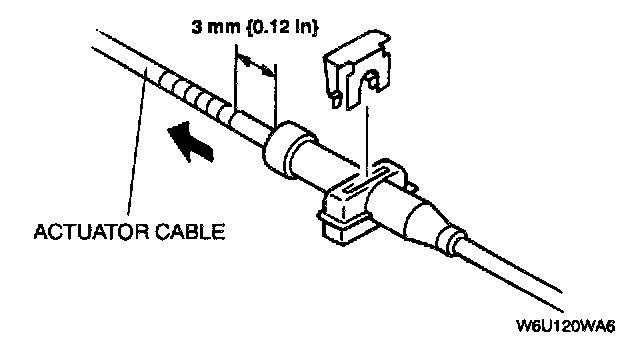

3. Then loosen the actuator cable until an approximately 3 mm {0.12 in} free play is obtained.
4. Install the clip.
