System Diagram
System Diagram
O-1 - Antilock Brake System (Without TCS) Connectors:

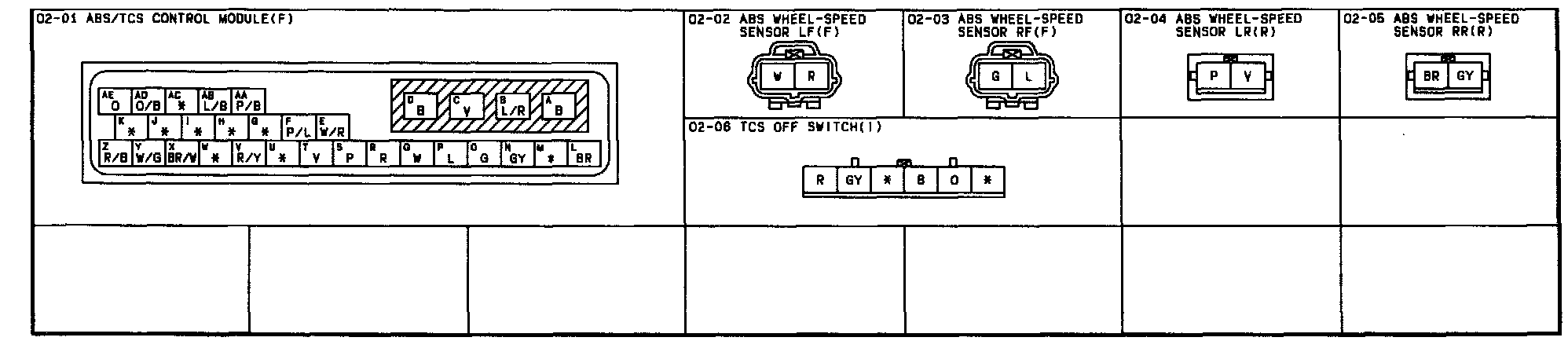

O-2 - Antilock Brake System (With TCS) Connectors:
