System Schematic

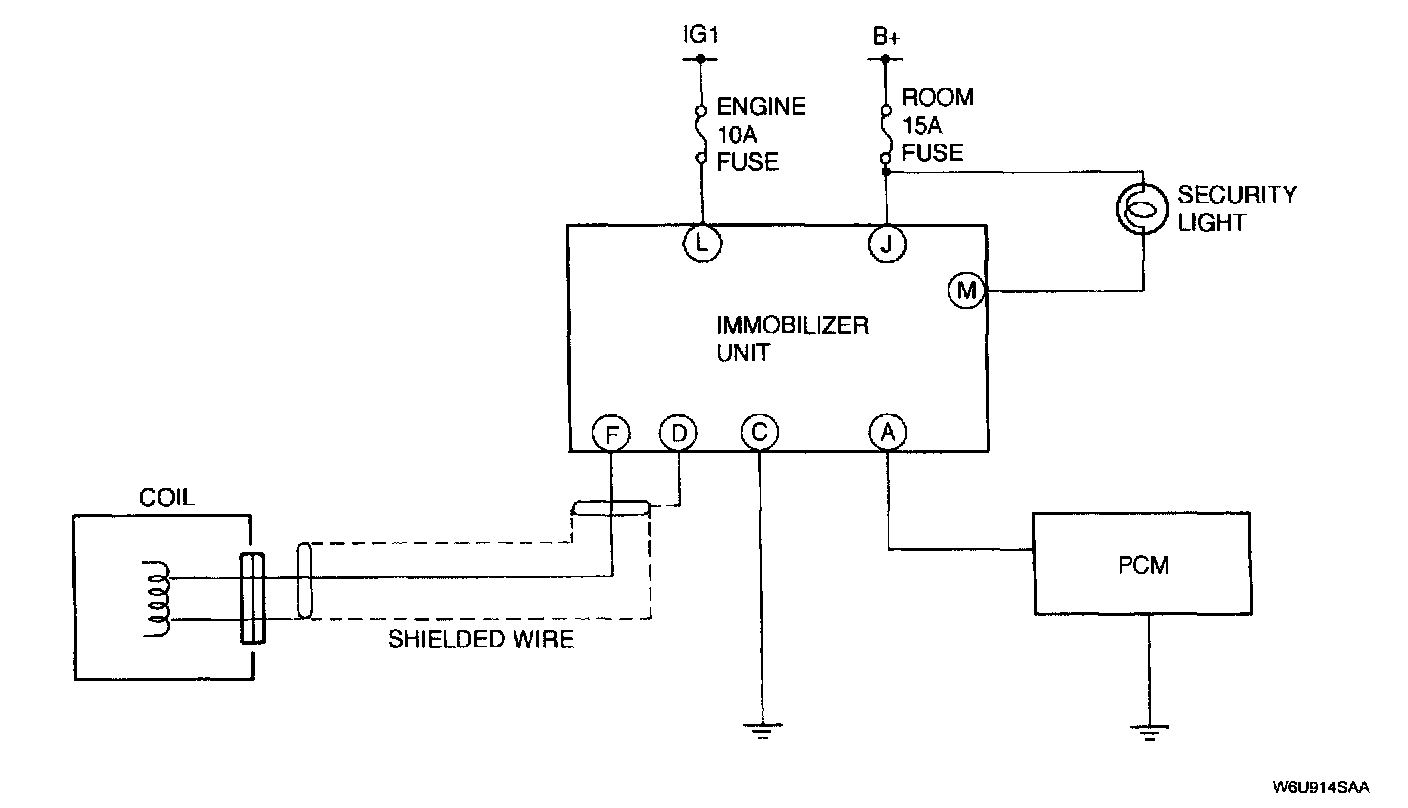

Immobilizer System:



Keyless Entry Security System Wiring Diagram:

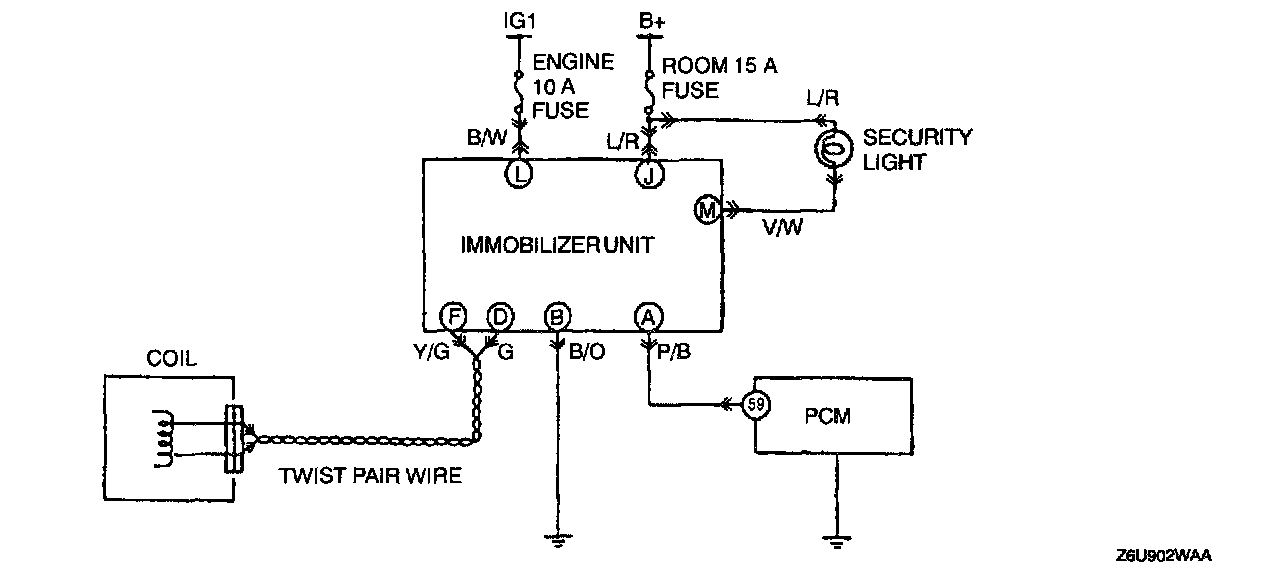

Immobilizer System Wiring Diagram:
