Starting System

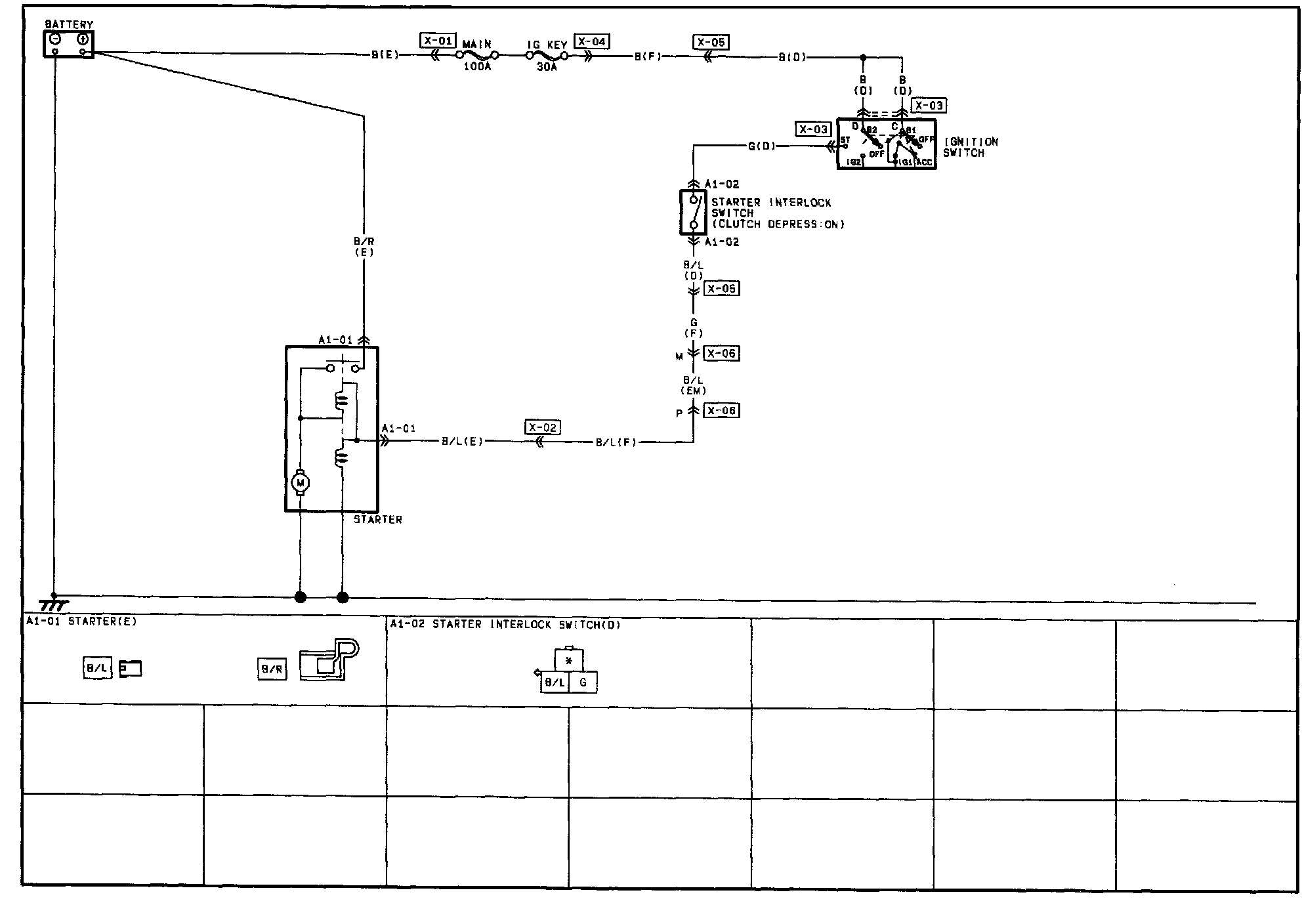

A-1 - Starting System (MTX) Circuit:

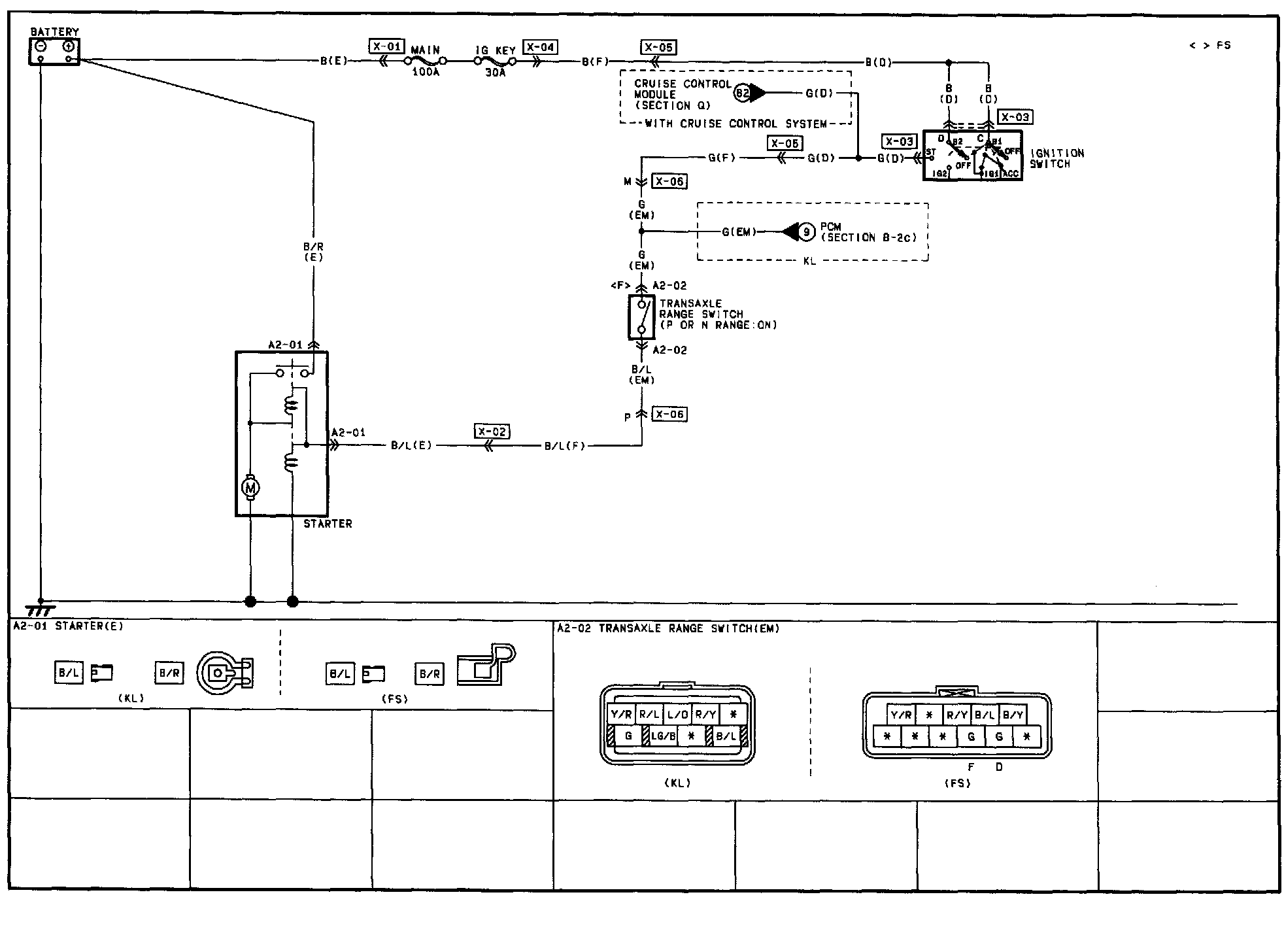

A-2 - Starting System (ATX) Circuit:
Wiring Diagrams
NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
Wiring Diagrams
NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
