Blower Motor Resistor: Service and Repair

RESISTOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the under cover.

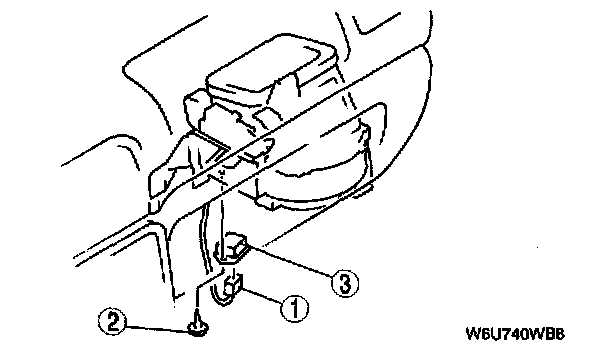

3. Remove in the order as indicated below.
1. Connector
2. Screw
3. Resistor

4. Install in the reverse order of removal.
