Compressor Clutch: Service and Repair

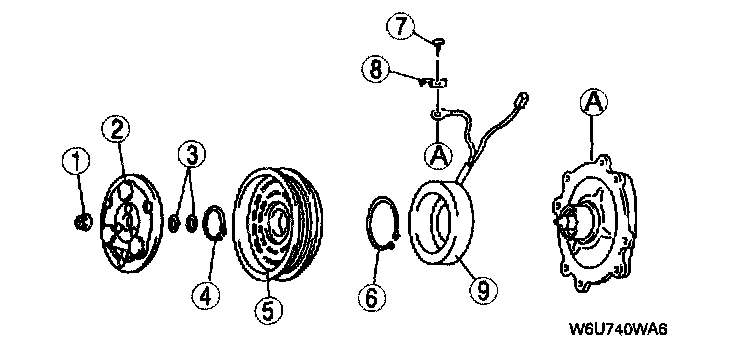

1. Disassemble in the order as indicated below.
1. Nut
2. Pressure plate
3. Shim
4. Snap ring
5. NC compressor pulley
6. Snap ring
7. Screw
8. Clip
9. Stator

2. Assemble in the reverse order of disassembly.
3. Adjust the magnetic clutch clearance.




Nut Removal/Installation Note

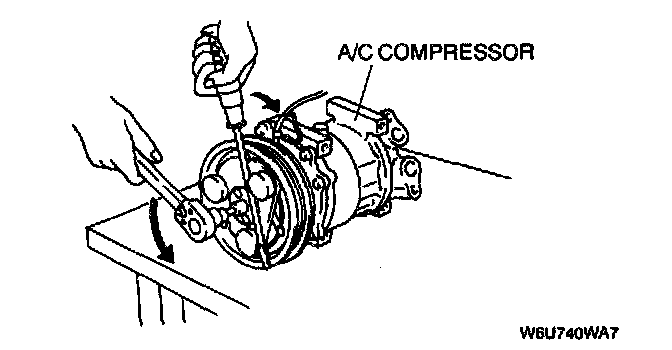

- When removing or installing the nut, hold the pressure plate in place as shown in the figure.

A/C Compressor Pulley Removal Note
- When removing the A/C compressor pulley, remove it by using a puller.
