Disassembly and Assembly

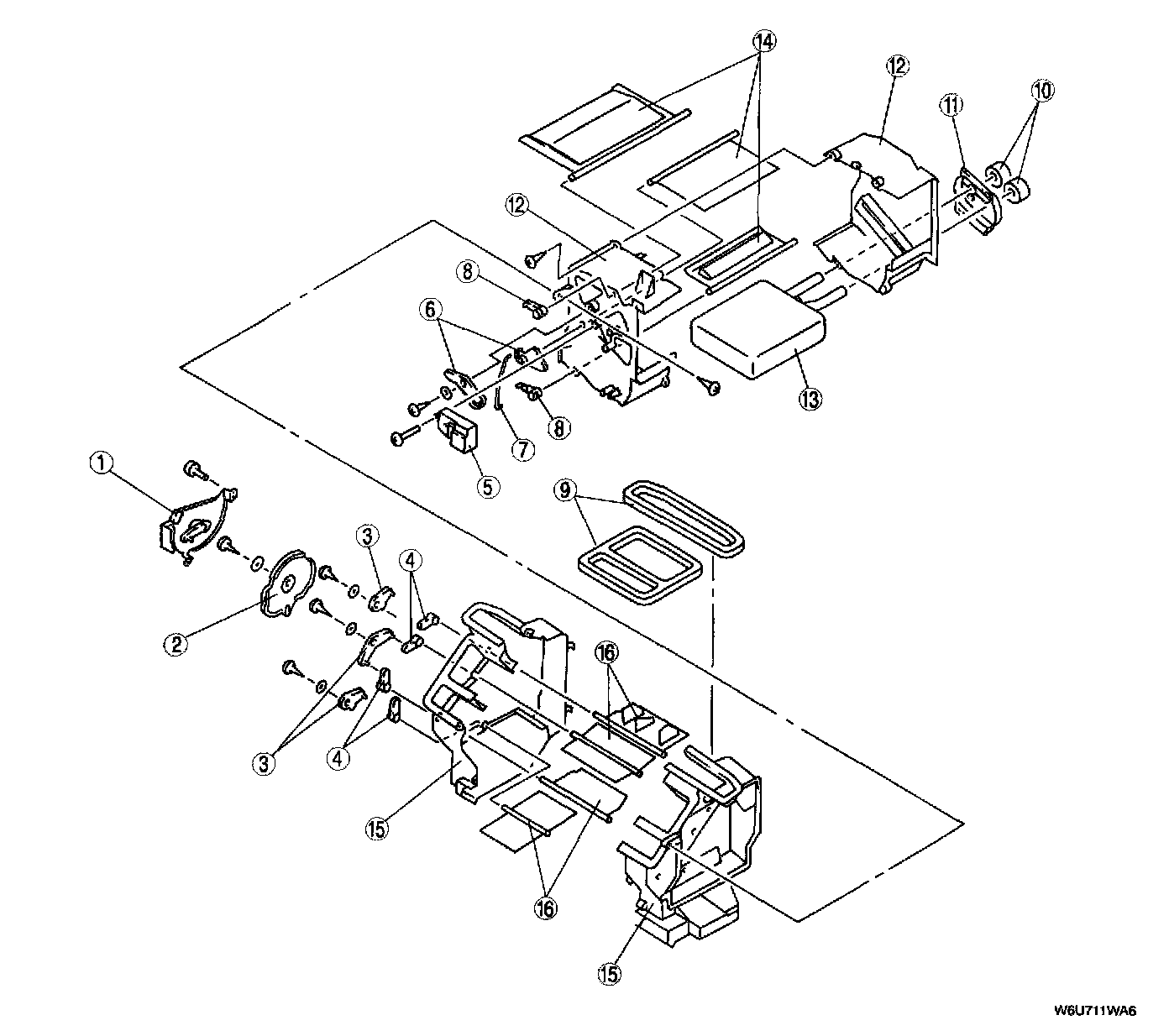

1. Disassemble in the order as indicated below.
1. Airflow mode actuator
2. Airflow mode main link
3. Airflow mode sub link
4. Airflow mode crank
5. Air mix actuator
6. Air mix link
7. Air mix rod
8. Air mix crank
9. Polyurethane protector
10. Seal
11. Cover
12. Case
13. Heater core
14. Air mix door
15. Case
16. Airflow mode door

2. Assemble in the reverse order of disassembly.
