Map Light: Service and Repair

MAP LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

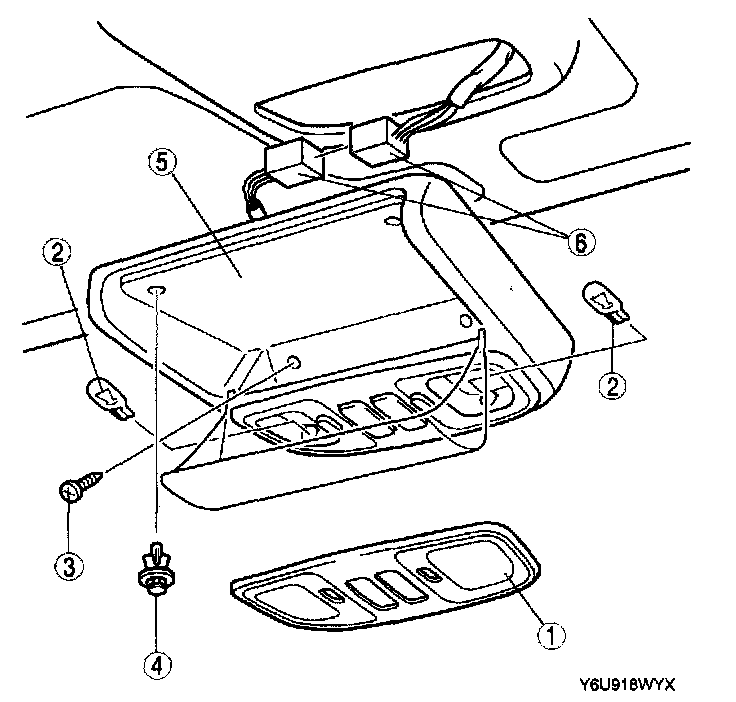

2. Remove in the order as indicated below.
1. Lens
2. Map light bulb
3. Screw
4. Fastener
5. Map light
6. Connector

3. Install in the reverse order of removal.

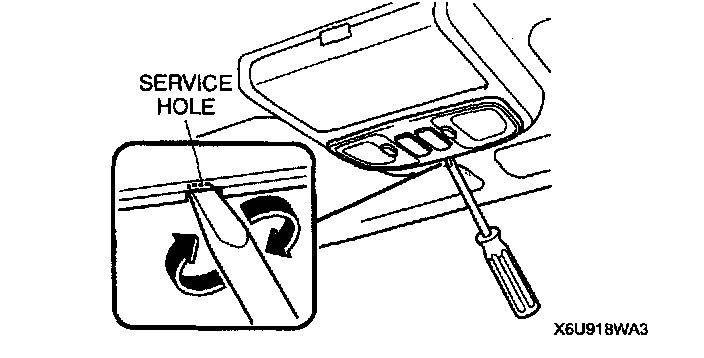

Lens Removal Note
1. Insert a tape-wrapped, flathead screwdriver into the service hole.
2. Twist the flathead screwdriver indicated by the arrow to remove the lens.
