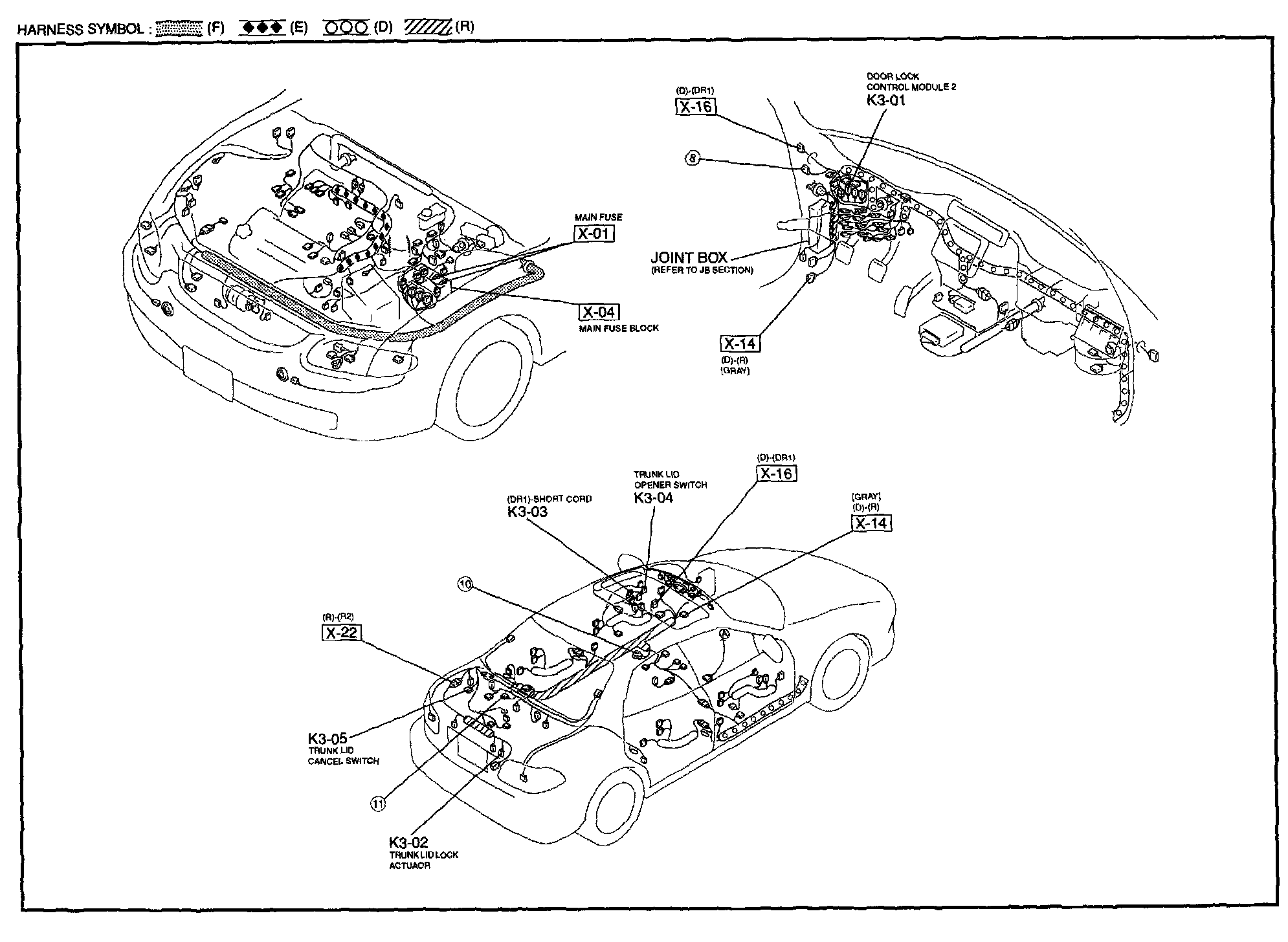

K-3 - Trunk Lock System
K-3 - Trunk Lock System
K-3 - Trunk Lock System Harness / Connector Symbols:
