Brake Signal: Description and Operation




- The Brake switch detects the brake pedal depressed/released condition.

Operation

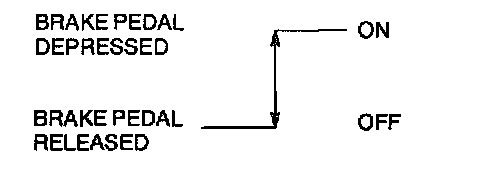

- The brake switch operates according to the switch operation condition as shown.
