Home >> Mazda >> 2001 >> 626 ES L4-2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Connector Views >> Computers and Control Systems >> B-1a

B-1a

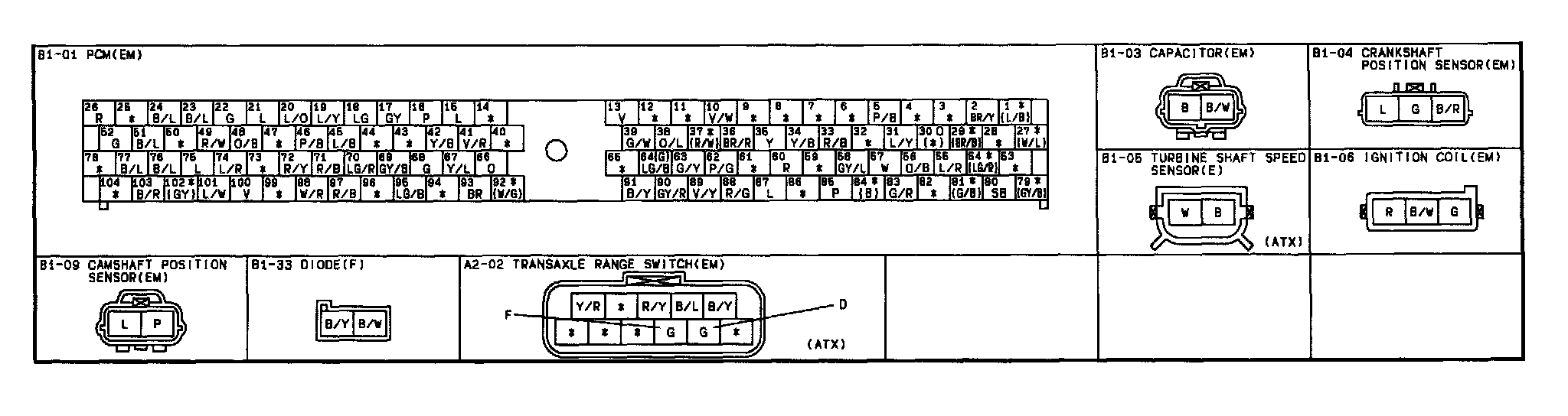

B-1a - EC-AT Control System (FS) / Engine Control System (FS) Connectors:

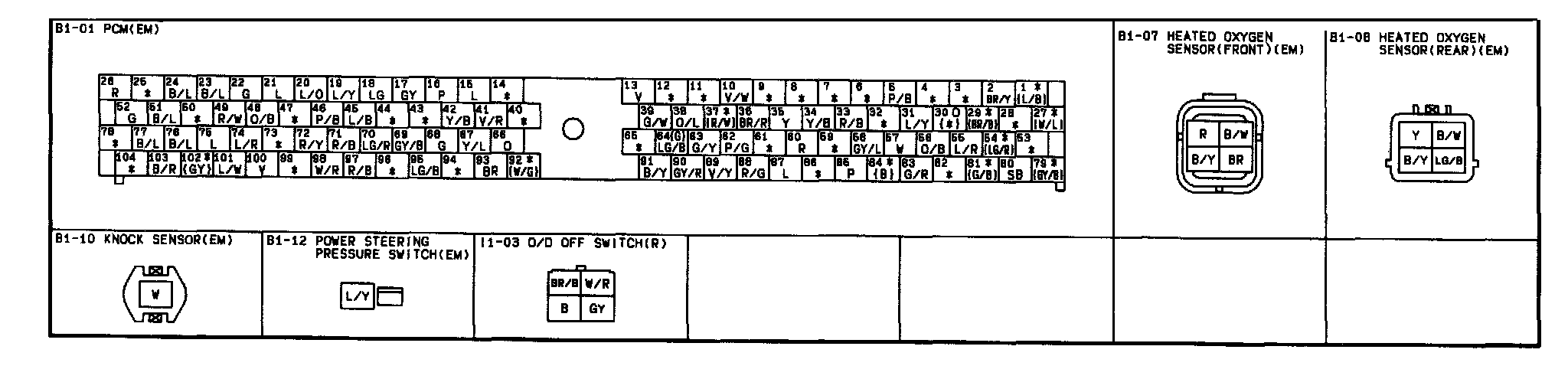

B-1b - EC-AT Control System (FS) / Engine Control System (FS) Connectors:

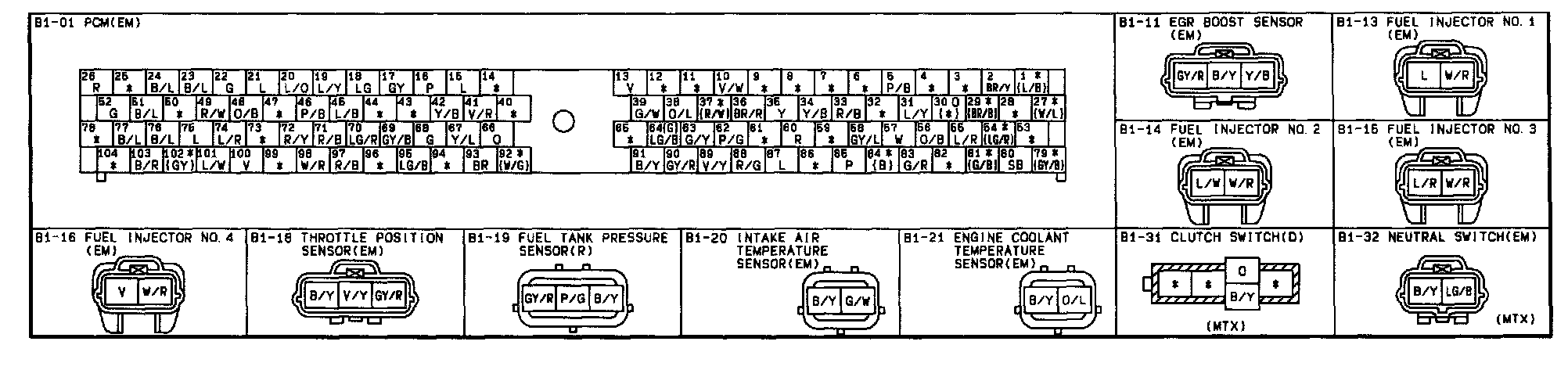

B-1c - EC-AT Control System (FS) / Engine Control System (FS) Connectors:



B-1d - EC-AT Control System (FS) / Engine Control System (FS) Connectors:
