EGR Valve: Service and Repair
EGR VALVE

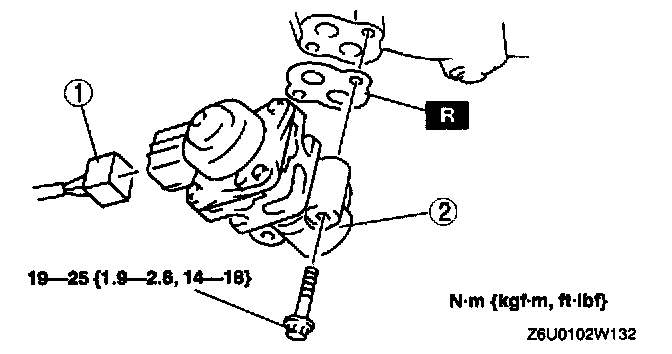

REMOVAL/INSTALLATION
1.
Remove in the order indicated below.
1.
EGR valve
connector
2.
EGR valve
2.
Install in the reverse order of removal.
