Ignition Coil Pack: Testing and Inspection

1. Disconnect the high-tension leads and ignition coil connector.

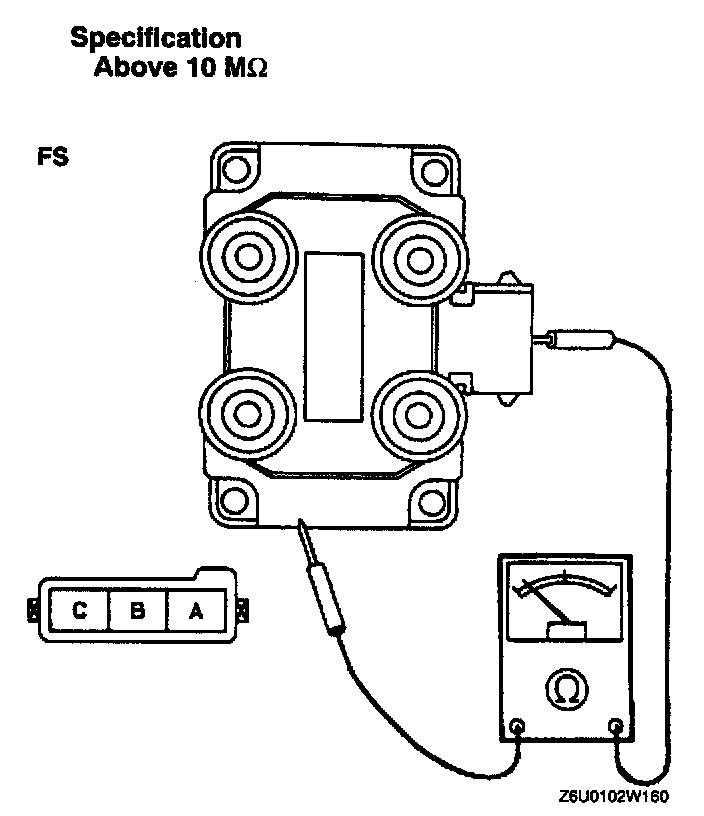

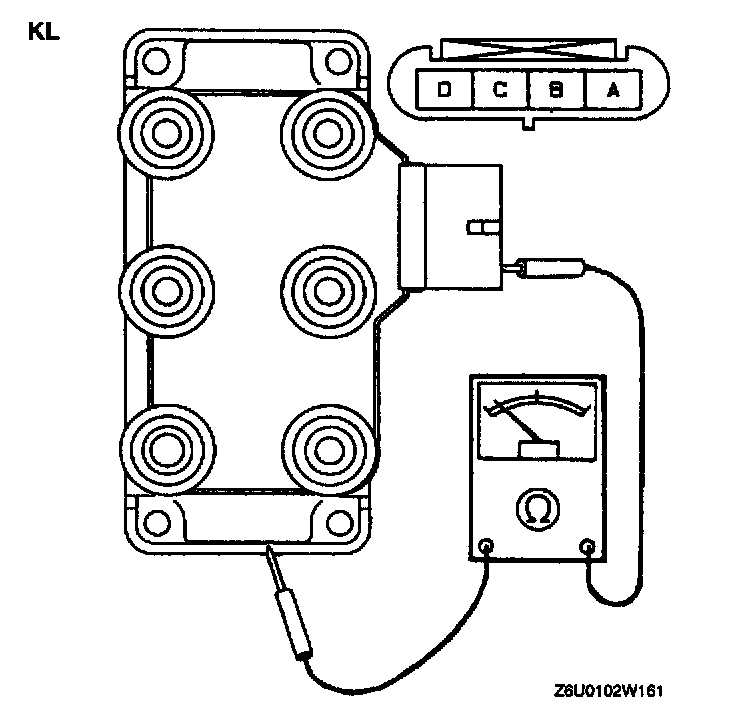

2. Measure the insulation resistance between terminal B (FS) or D (KL), and ignition coil case using an ohmmeter.
- If not as specified, replace the ignition coil.
