Home
>>
Mazda
>>
2001
>>
626 ES L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Locations
>>
Connector Locations
Connector Locations

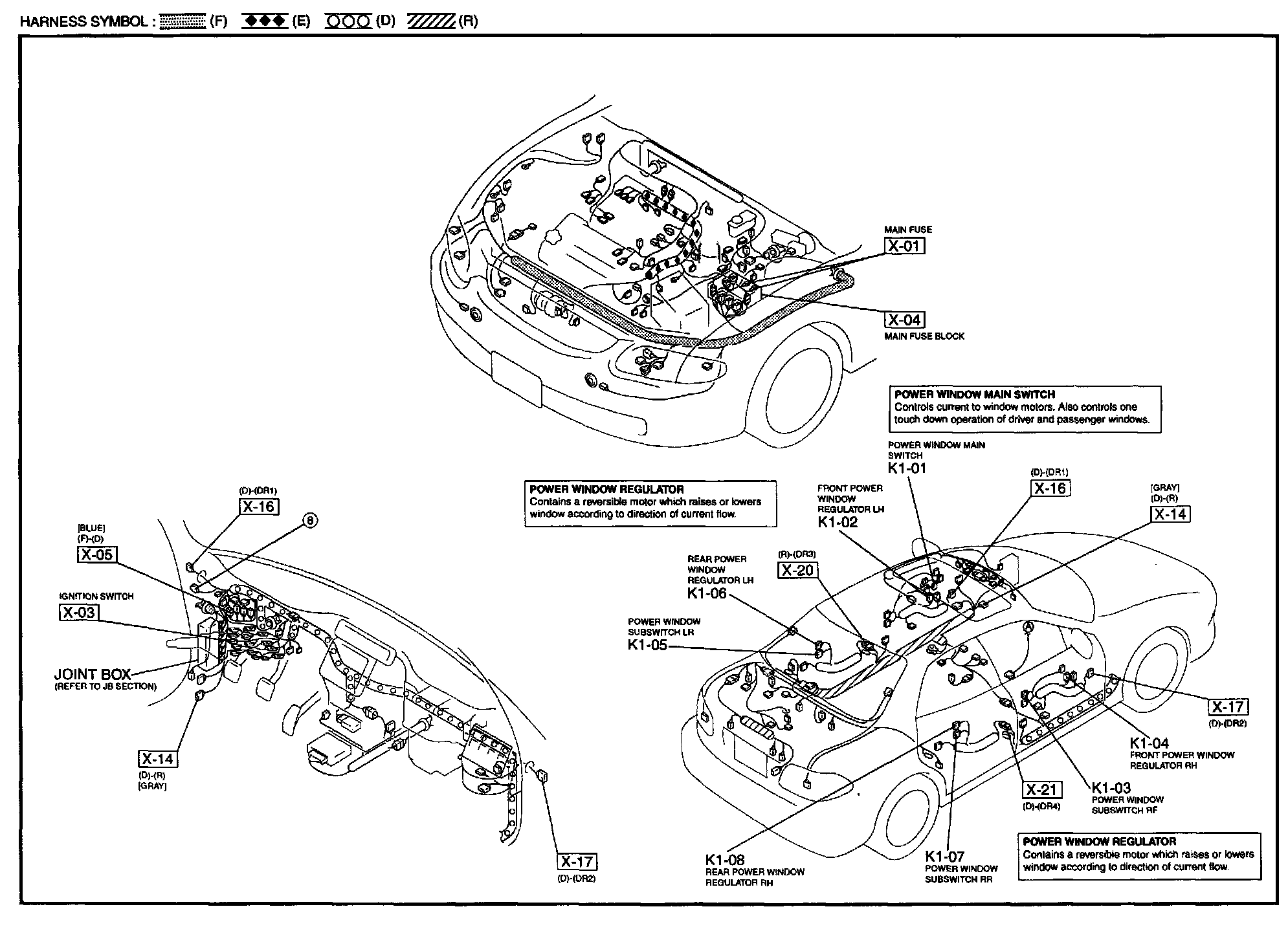

K-1 - Power Window System Harness / Connector Symbols:
