Washer Fluid Level Switch: Service and Repair

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Partially peel off the right side mud guard.
3. Remove the windshield washer tank.

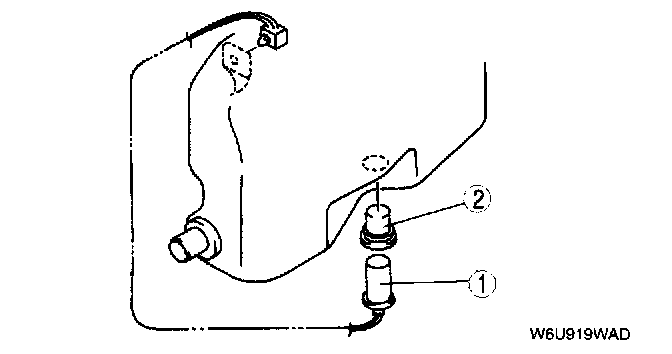

4. Remove in the order as indicated below.
1. Washer fluid-level sensor
2. Grommet

5. Install in the reverse order of removal.
