Windshield Washer Motor: Service and Repair

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Partially peel off the right side mud guard.
3. Remove the windshield washer tank.

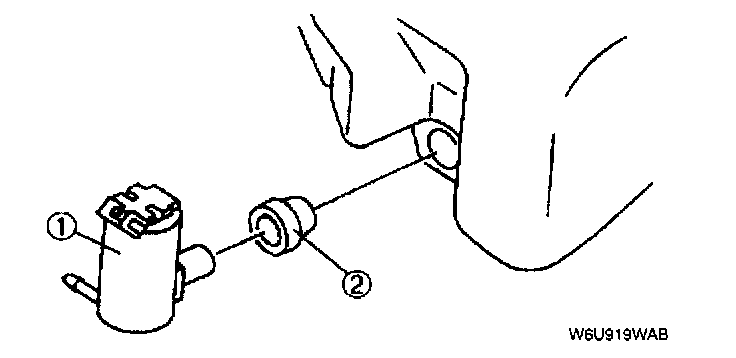

4. Remove in the order as indicated below.
1. Windshield washer motor
2. Grommet

5. Install in the reverse order of removal.
