O - Antilock Brake System
O - Antilock Brake System

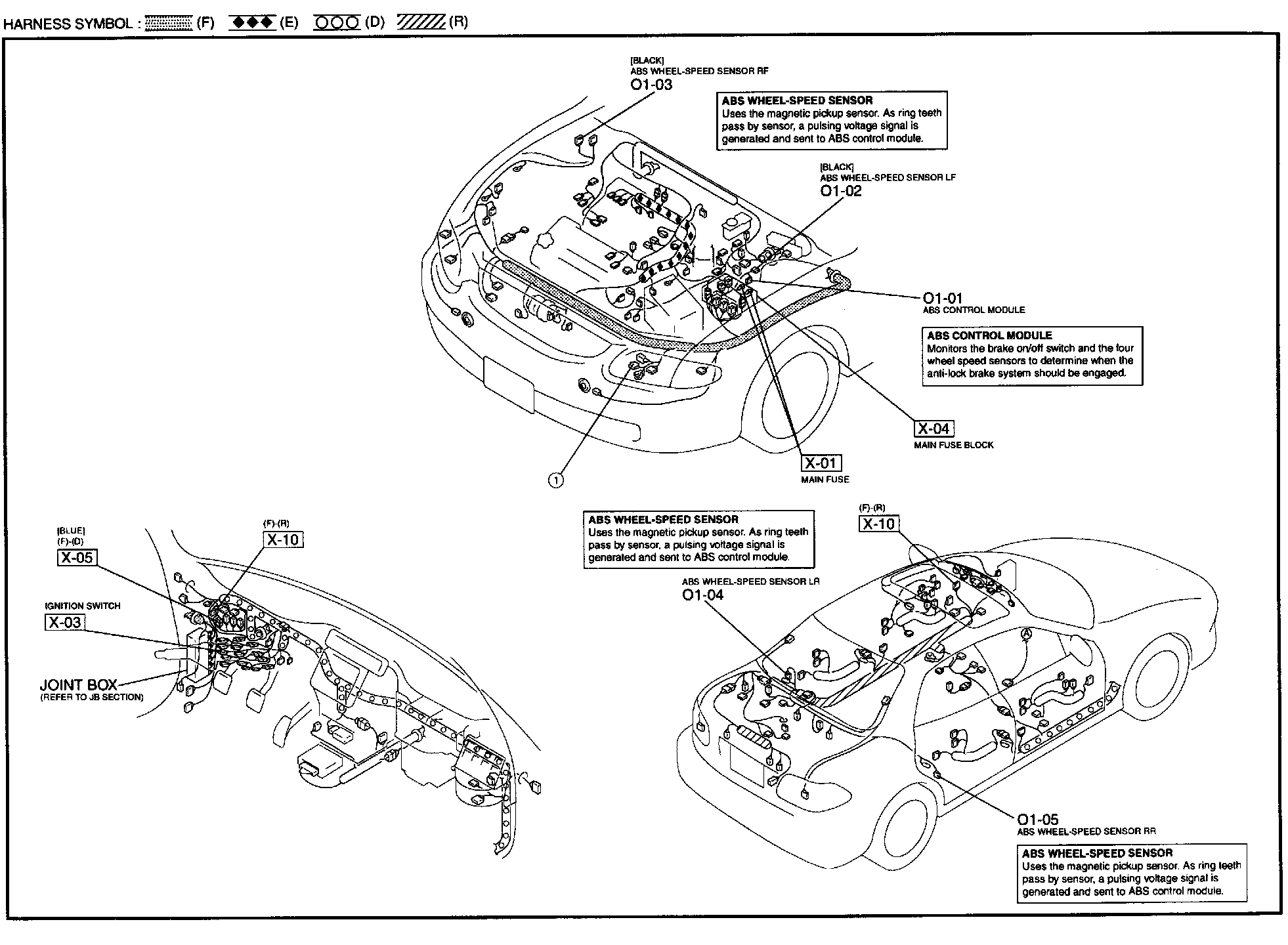

O-1 - Antilock Brake System (Without TCS) Harness / Connector Symbols:

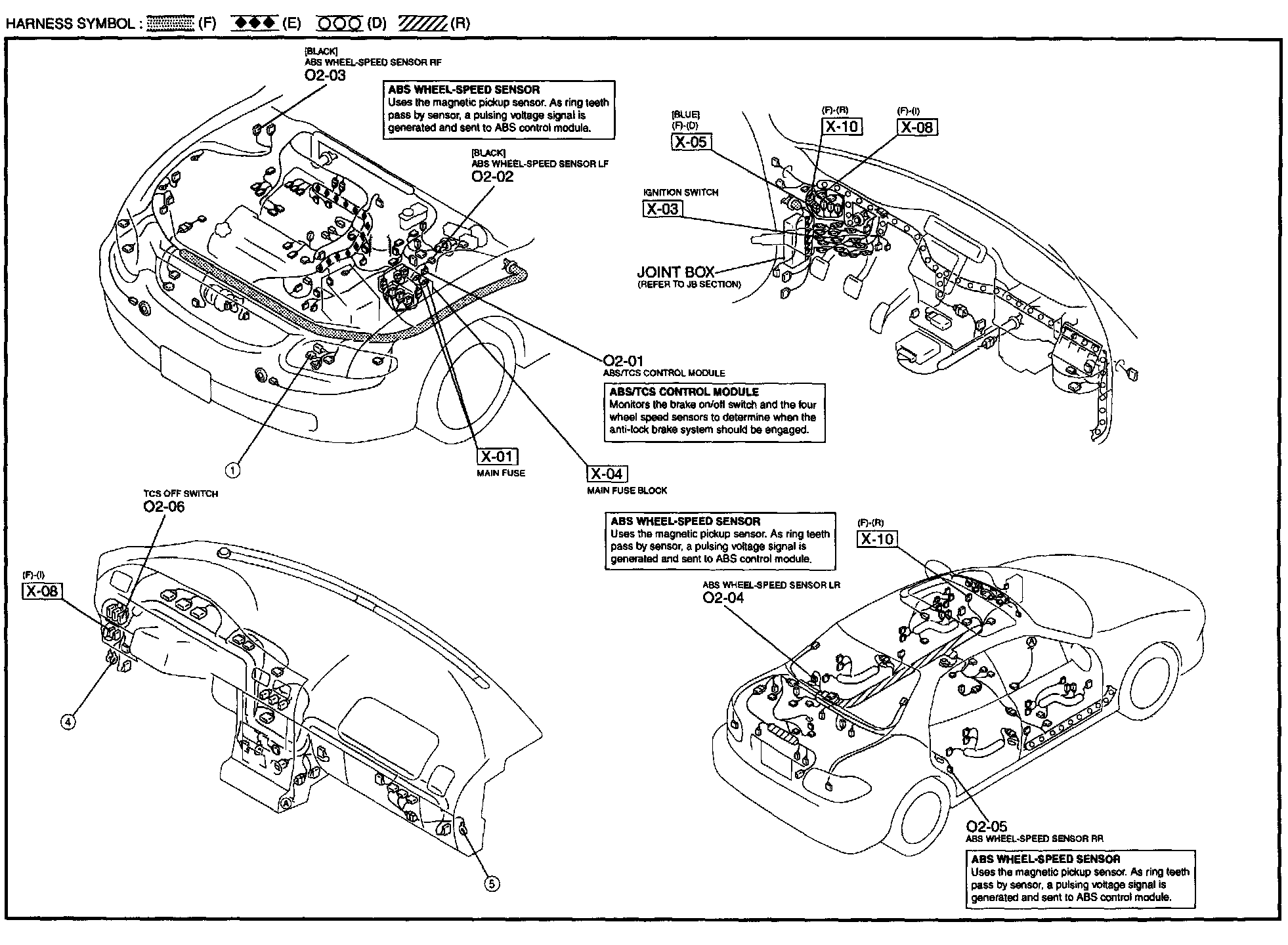

O-2 - Antilock Brake System (With TCS) Harness / Connector Symbols:
