Brake Signal: Description and Operation

- The Brake switch detects the brake pedal depressed/released condition.




Operation

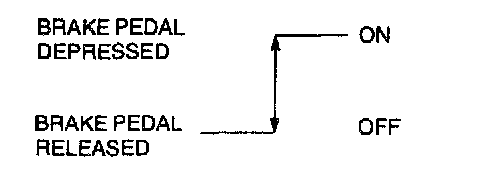

- The brake switch operates according to the switch operation condition as shown.
