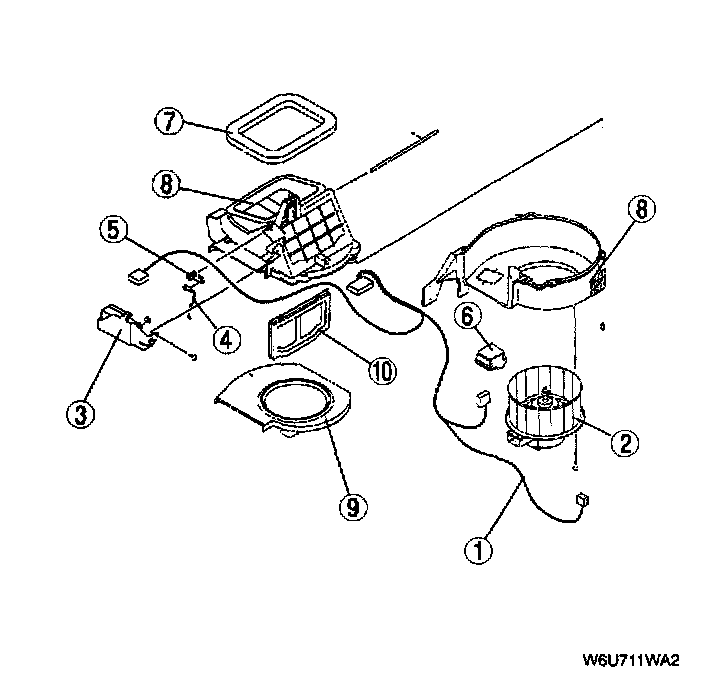

Blower Unit Disassembly and Assembly

1. Disassemble in the order as indicated below.
1. Blower harness
2. Blower motor
3. Air intake actuator
4. Air intake rod
5. Air intake link
6. Resistor
7. Polyurethane protector
8. Case
9. Air guider
10. Air intake door

2. Assemble in the reverse order of disassembly.
