Front Fender: Service and Repair

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the front bumper.

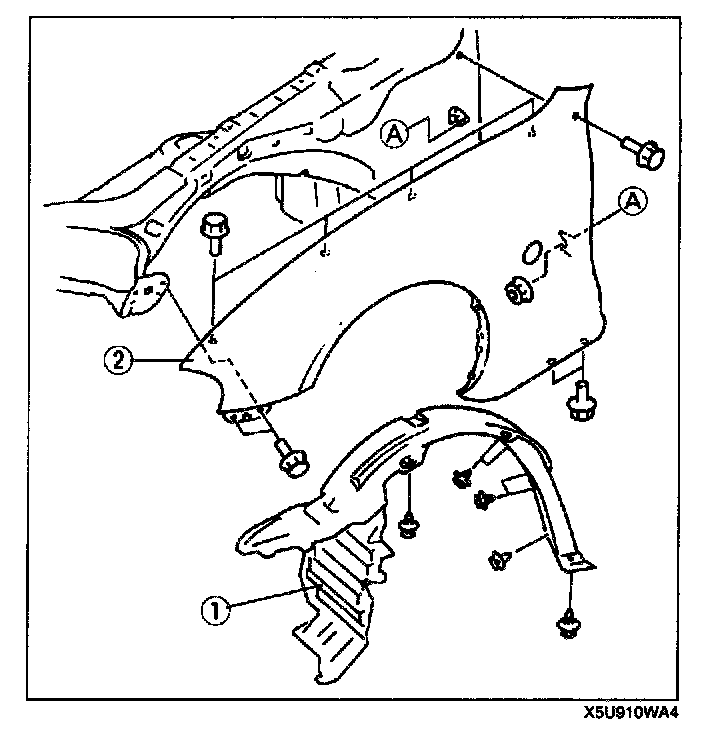

3. Remove in the order indicated.
1. Mudguard
2. Front fender panel

4. Install in the reverse order of removal.
