Seats: Service and Repair

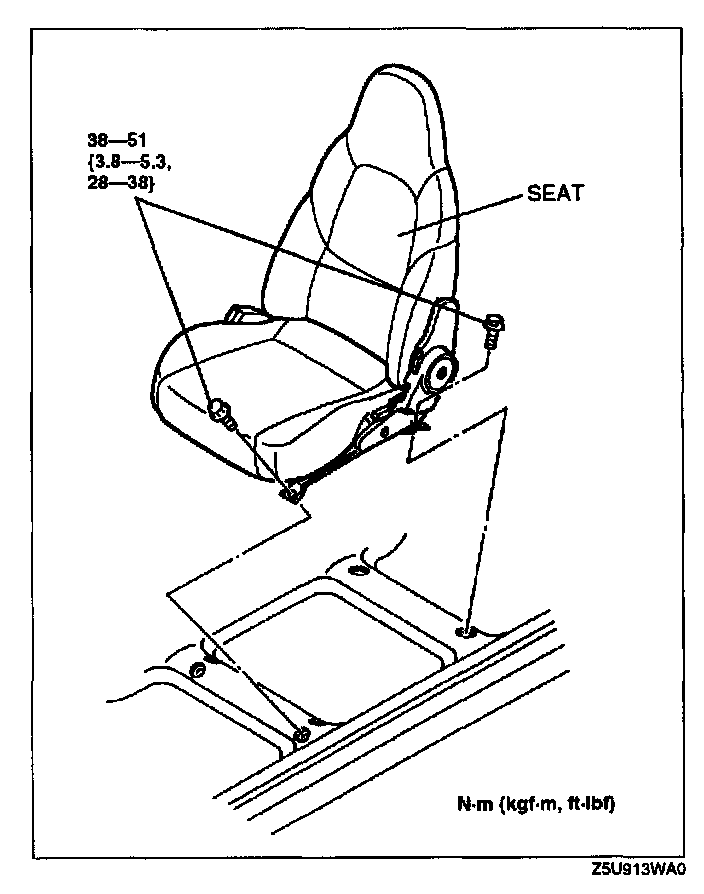

SEAT REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Disconnect the buckle switch connector.
3. Remove in the bolts, then remove the seat.
4. Install in the reverse order of removal.

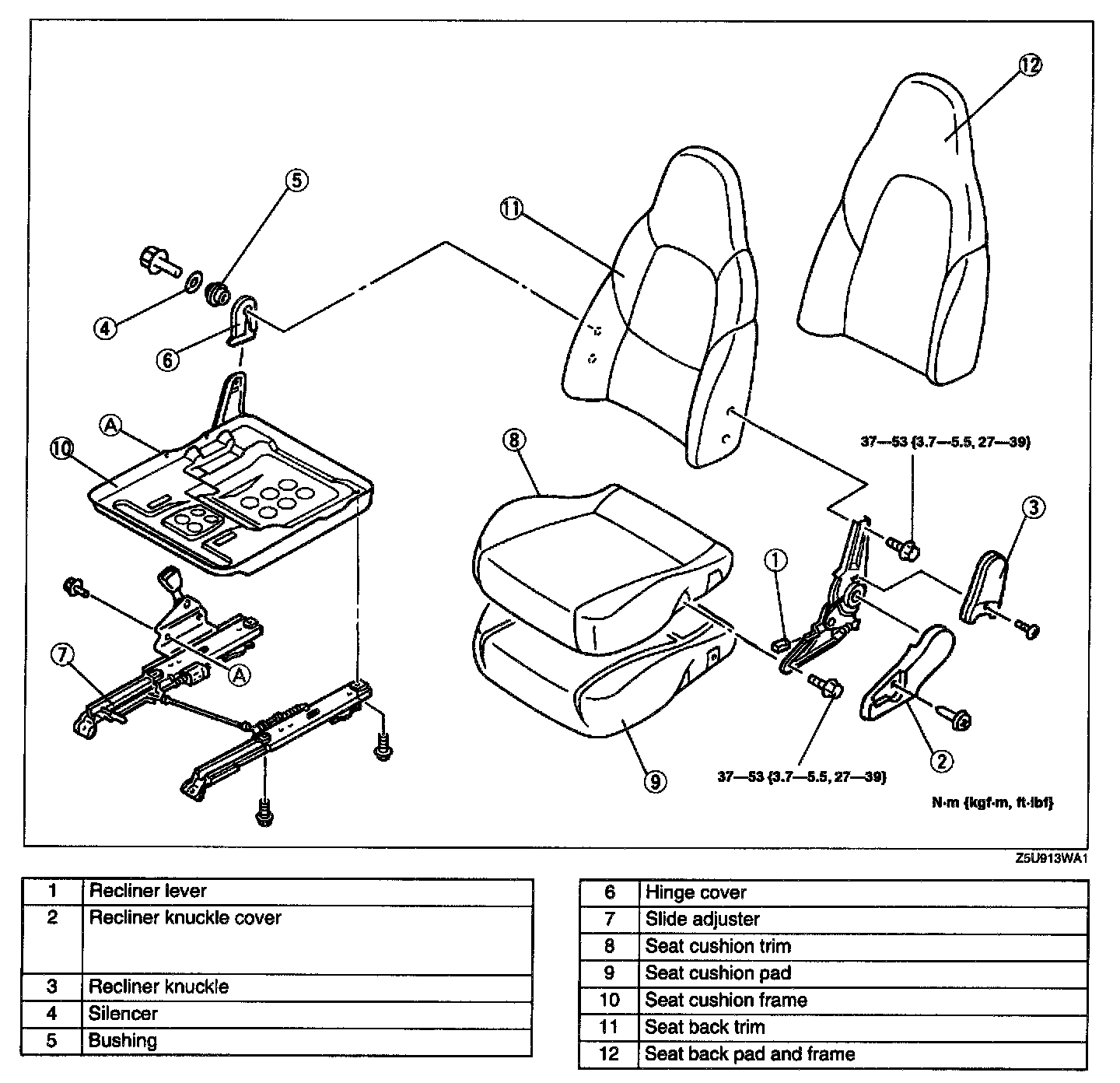

SEAT DISASSEMBLY/ASSEMBLY
1. Disassemble in the order indicated.
1. Recliner lever
2. Recliner knuckle cover
3. Recliner knuckle
4. Silencer
5. Bushing
6. Hinge cover
7. Slide adjuster
8. Seat cushion trim
9. Seat cushion pad
10. Seat cushion frame
11. Seat back trim
12. Seat back pad and frame
2. Assemble in the reverse order of disassembly.
Reclining Knuckle Cover Removal Note
1. Remove the screws.
2. Lift the reclining knuckle cover in the arrow direction to remove the hook.
