Center Mounted Brake Lamp

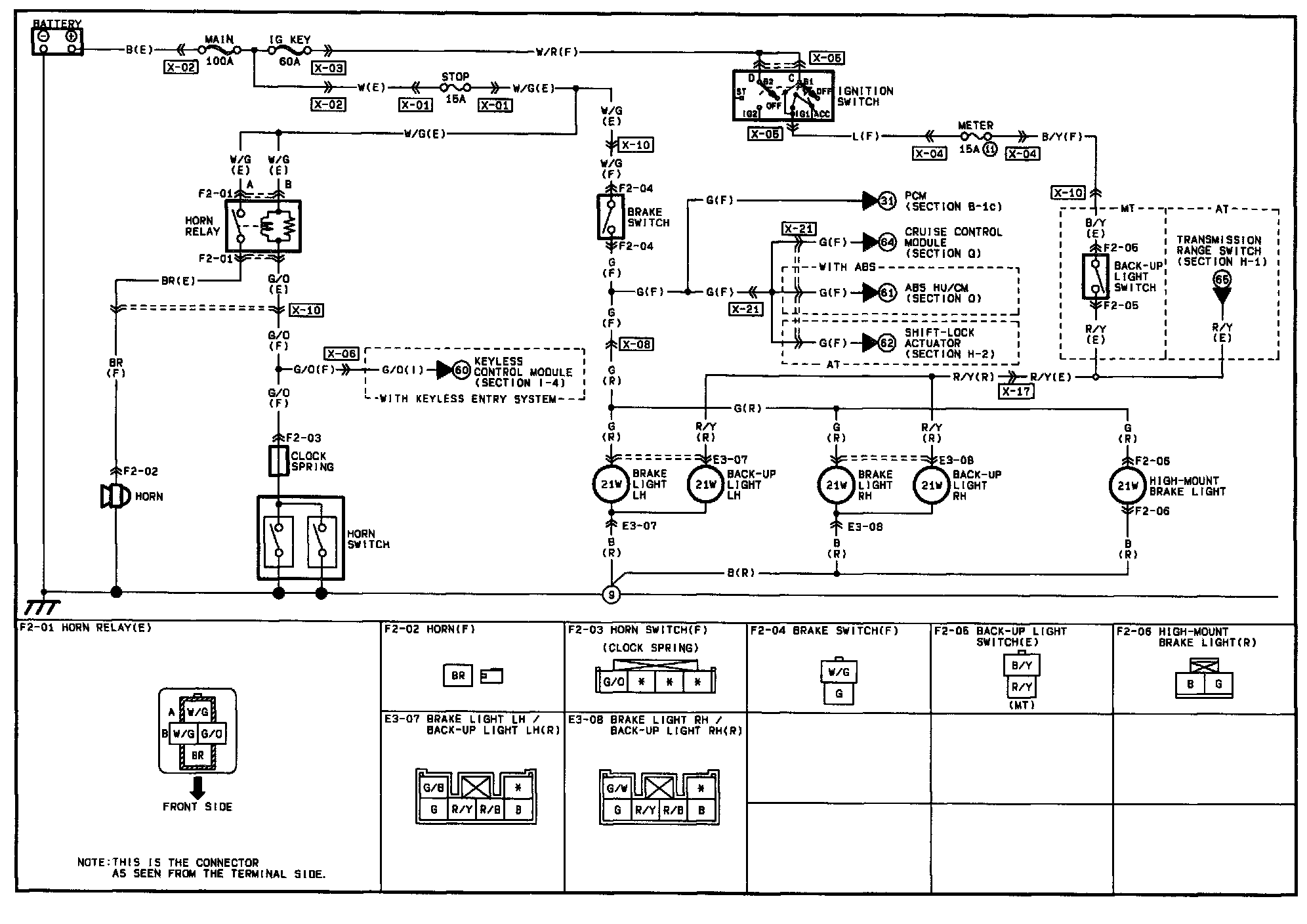

F-2 - Back-up / Brake / High-mount Brake Lights / Horn Circuit:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
