Electrical Diagrams

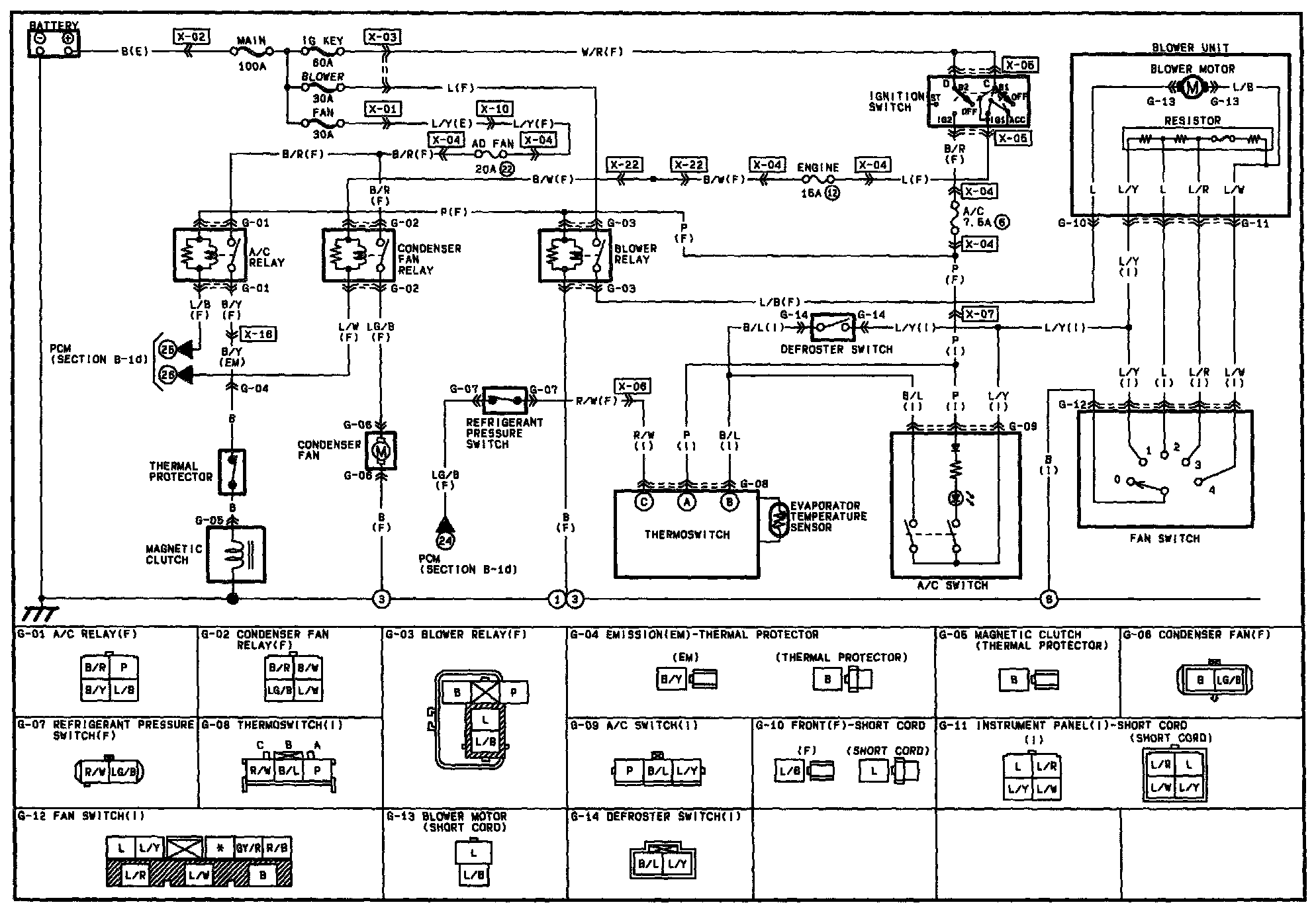

G - Condenser Fan System / Heater And Air Conditioner Circuit:

Wiring Diagram

NOTE: To view other sections referred to in these diagrams, see Complete Body and Chassis Diagrams by Section (A Thru Z) Electrical Diagrams
