Component Locations

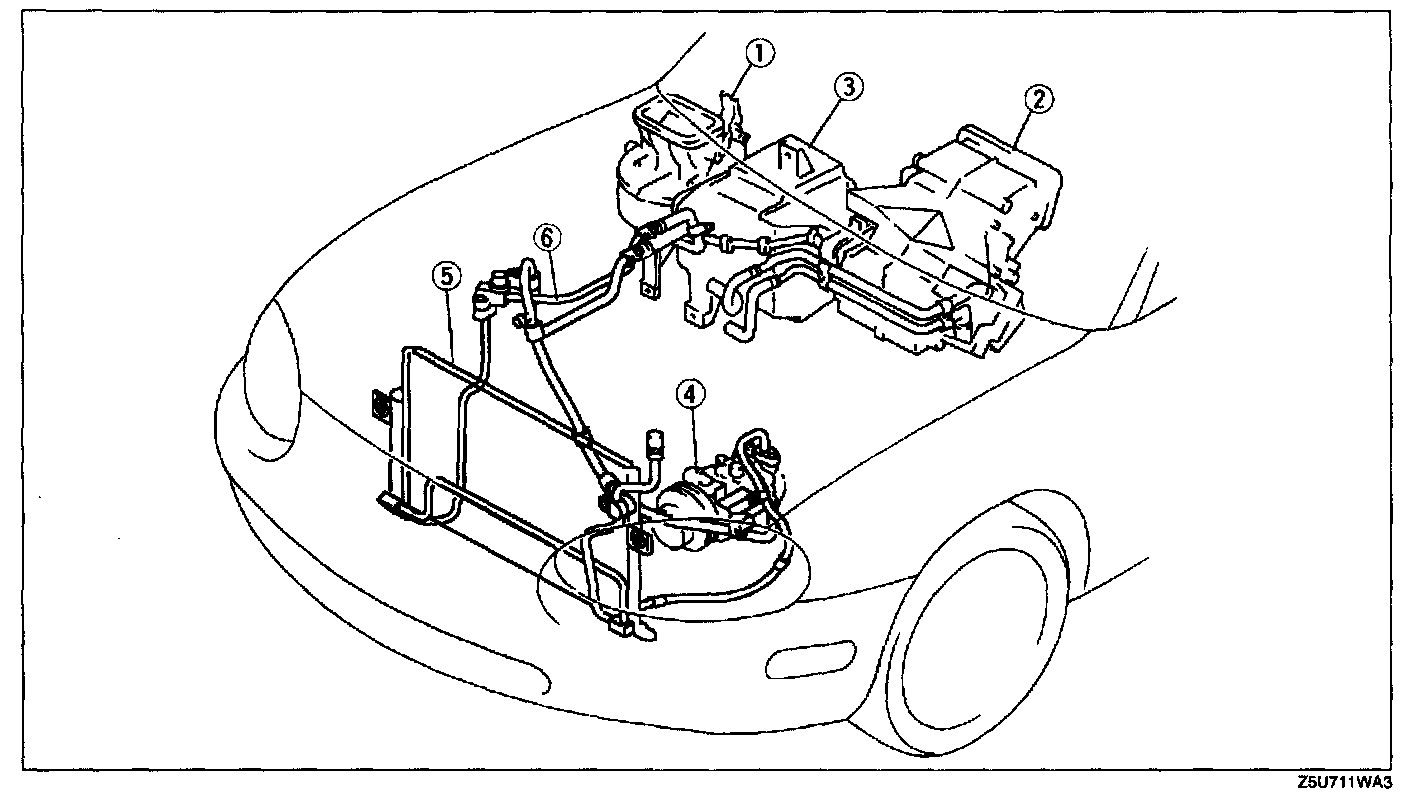

Basic System:




1. Blower unit
2. Heater unit
3. Cooling unit
4. A/C compressor
5. Condenser
6. Refrigerant lines

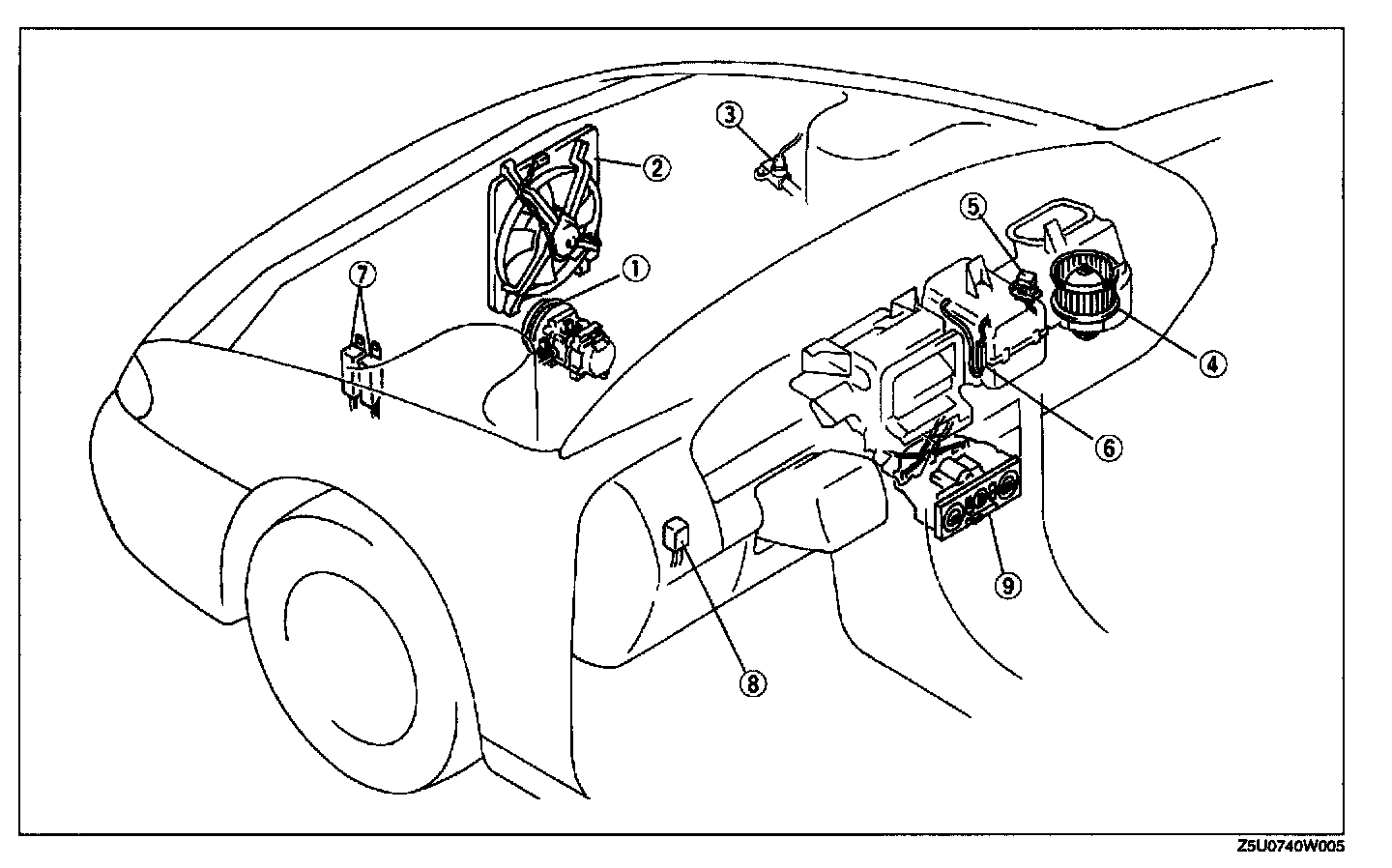

Control System:




1. Magnetic clutch
2. Condenser fan
3. Refrigerant pressure switch
4. Blower motor
5. Resistor
6. Thermoswitch
7. A/C relay and condenser fan relay
8. Blower relay
9. Climate control unit
