H-1 - EC-at Control System
H-1 - EC-at Control System

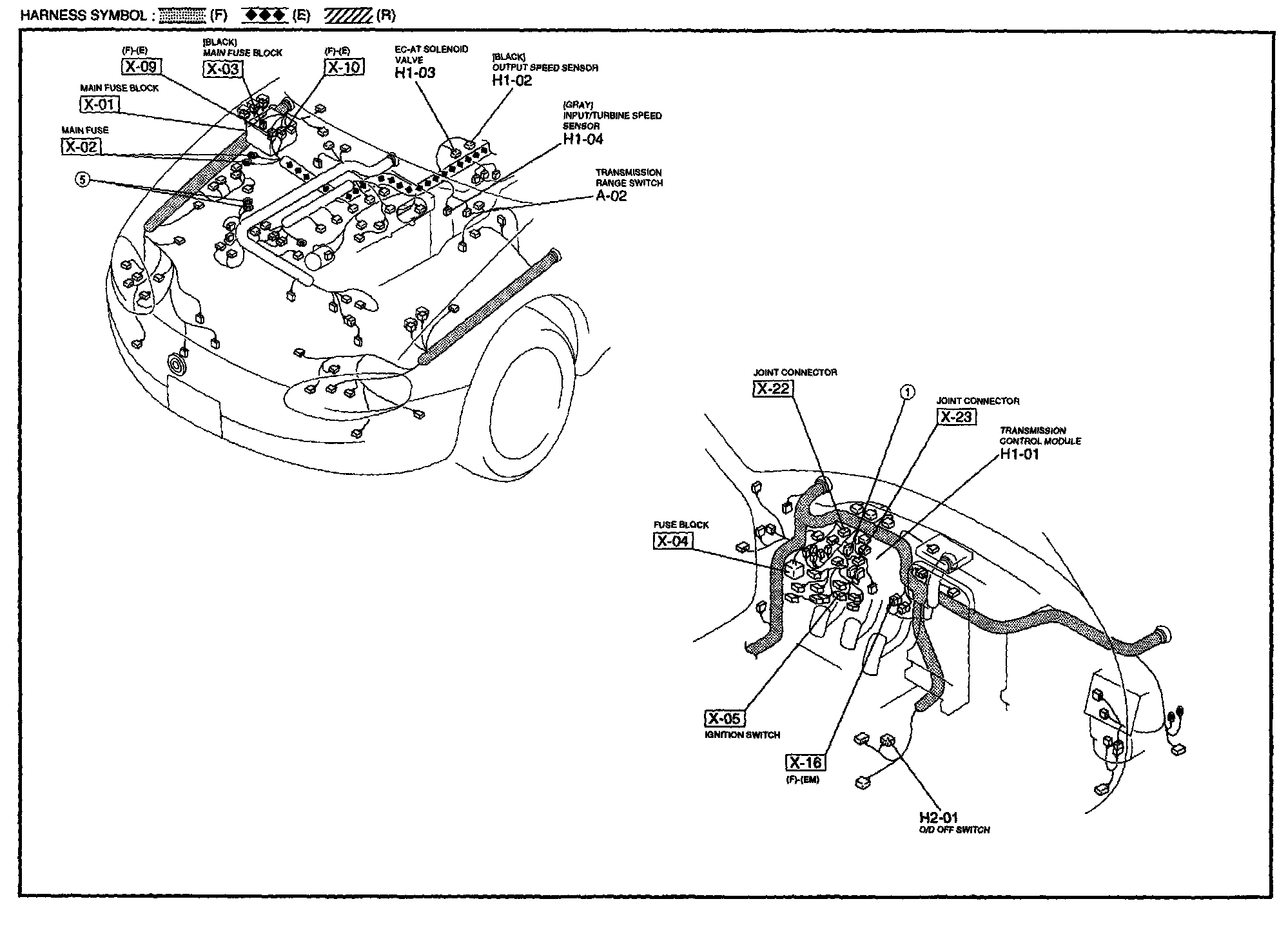

H-1 - EC-AT Control System Harness/Connector Symbols:
