Home >> Mazda >> 2001 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> I-2 - Cigarette Lighter / Rear Window Defroster

I-2 - Cigarette Lighter / Rear Window Defroster

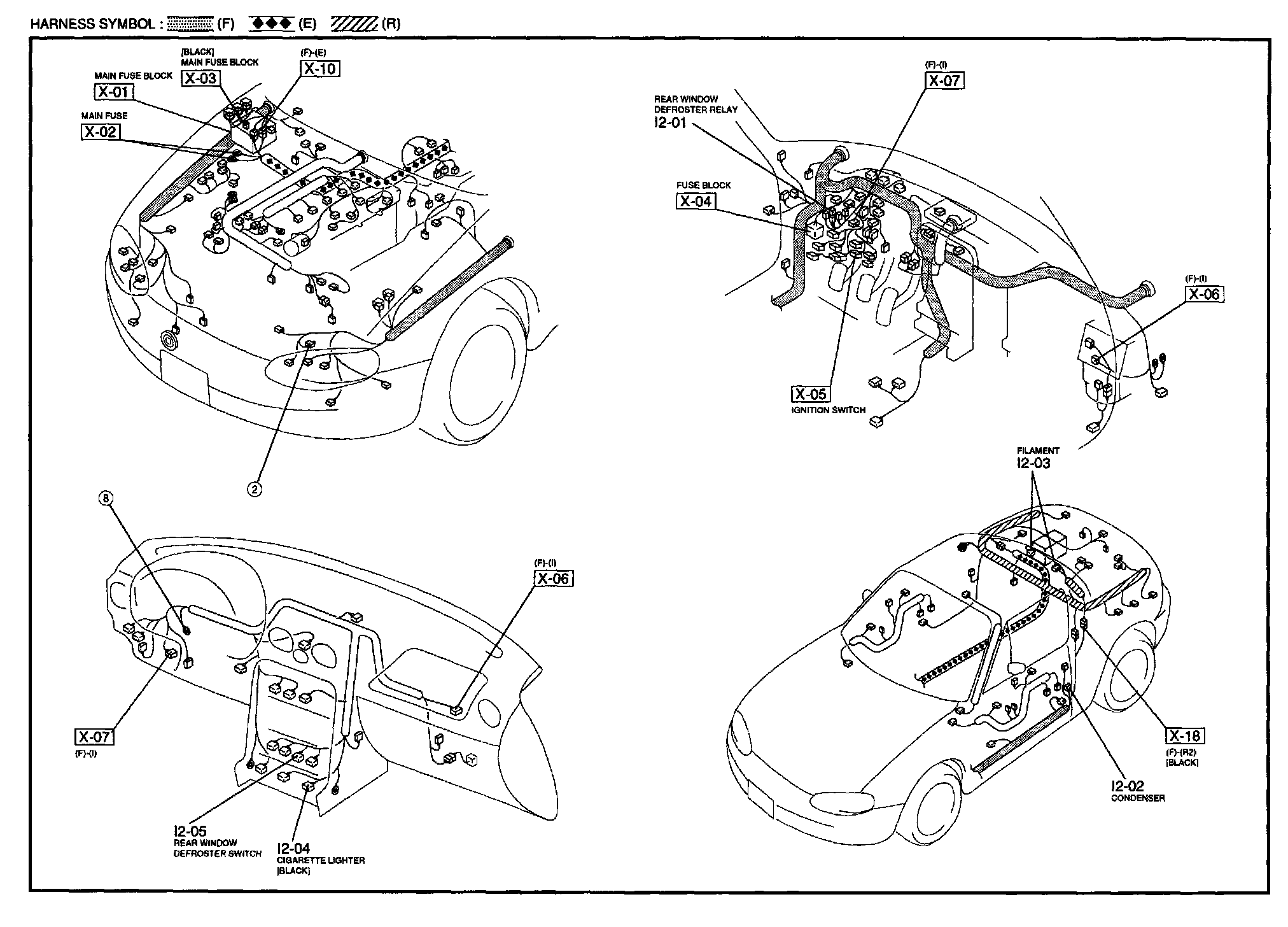

I-2 - Cigarette Lighter / Rear Window Defroster Harness/Connector Symbols:
