Main Fuse

REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

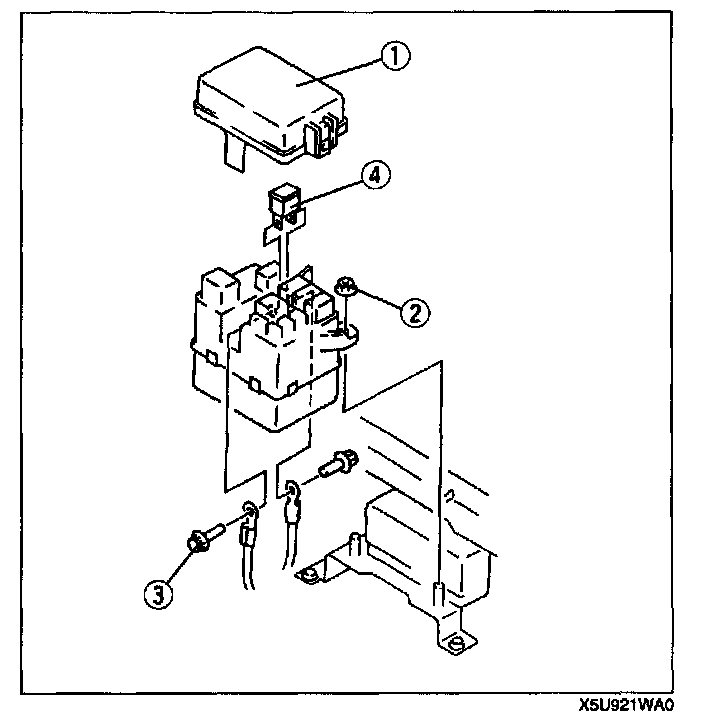

2. Remove in the order indicated.
1. Main fuse block cover
2. Nut
3. Bolt
4. Main fuse

3. Install in the reverse order of removal.
